The bridge is equipped with a Code 83 rail-profile; if you are using another profile for your track, use of transition
tracks may be necessary. The top of your rails and the bridge rails must be level.
For a smooth transition between the bridge and service tracks, you need to modify your rails by filing the inside
at a slight angle for about 3/16´´ (4 mm) (see Fig. 1).
For the rails to sit correctly on the lip of the pit, you must
remove a few sleepers from the end of the track.
Important note: Leave a gap of about 1/16´´(1.5 mm)
between the end of each service track and the bridge.
All service tracks must align with the bridge rails in a
straight line. The bridge can be used as a guide.
Wire the service tracks (parts not included) for power as
desired.
You must fix the position of your service tracks, before you program the positions.

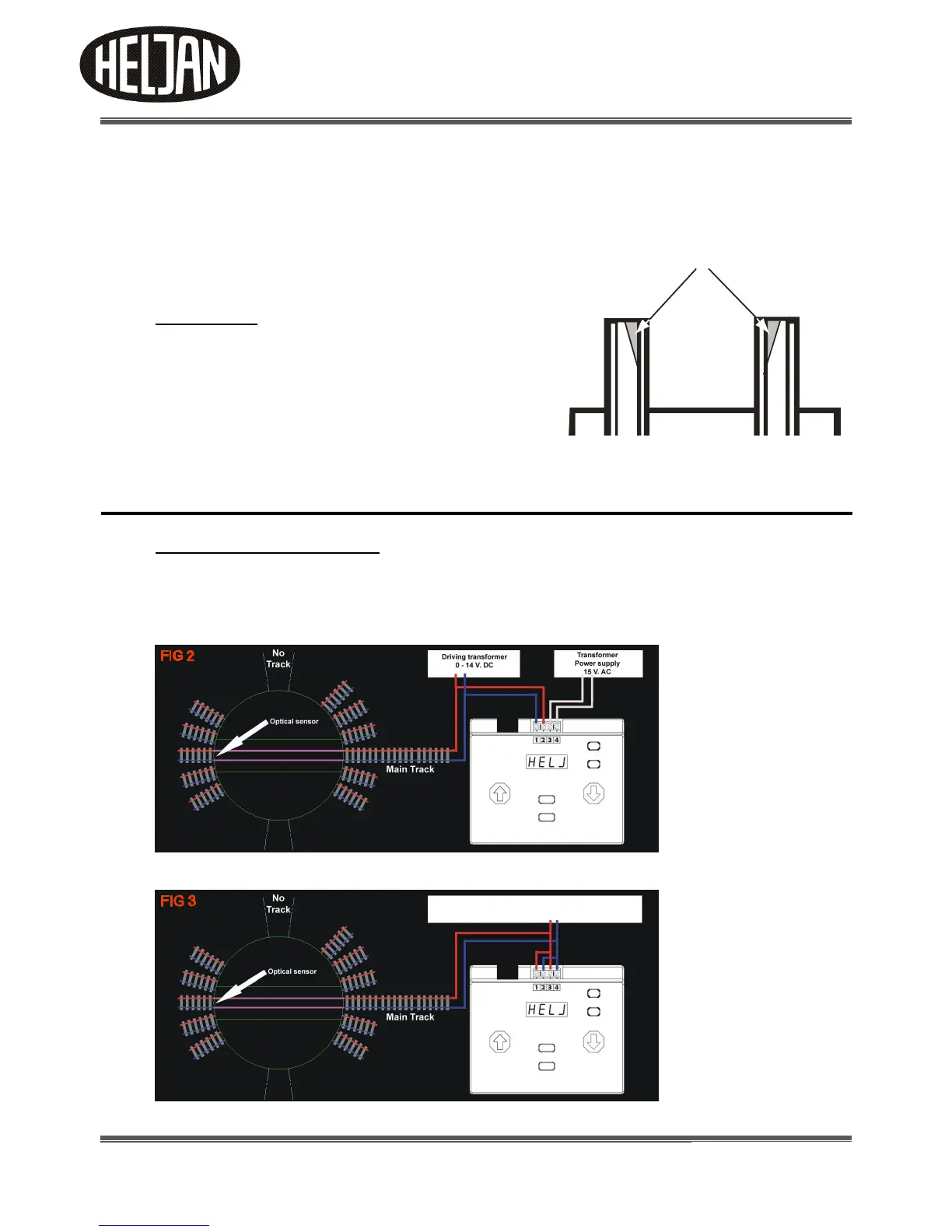

4. Connection – Wiring-diagram
Please note that your DCC Turntable automatically reverses the track polarity in the “ No Track” area. It is
therefore important that you are aware of the polarity over and under the “No Track” area.
