Distance from ceiling
Distance from wall
should be over 50mm
Distance from the wall
Distance from floor
Air intake distance from
the wall should be
over 250mm
Air intake distance from the wall
over 250mm
air outlet distance from the wall
should be over 500mm
should be over 50 mm
should be over 50mm
should be over 2300mm
should be over 250mm
Installation must be performed in accordance with
the national wiring standards by authorized personnel only.
Above figure is only a simple presentation
of the unit, it may not match the external
appearance of the unit you purchased.
15
Installation instructions

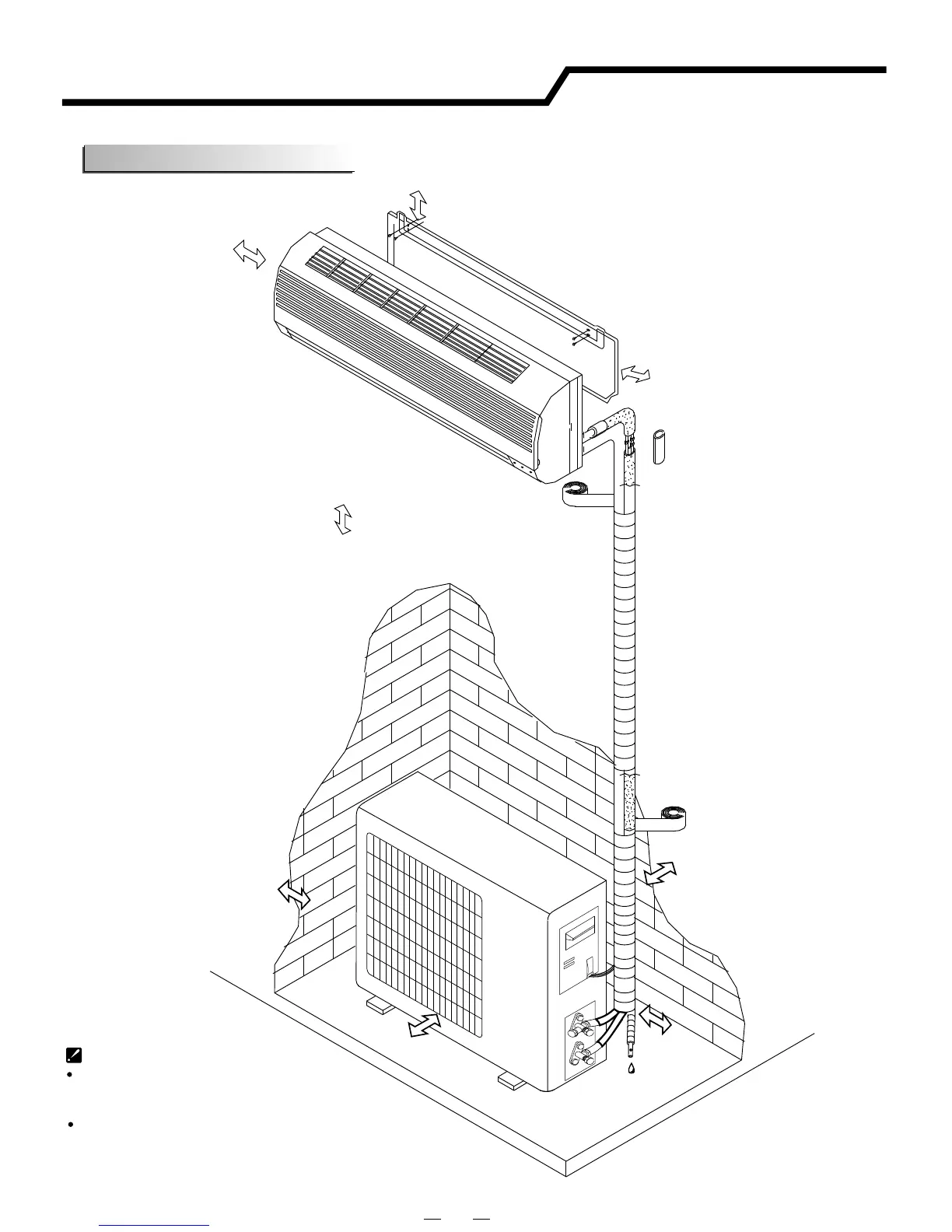

Installation diagram
