HELLER HTLW7 - Technical Information; Wiring Diagram; Specifications



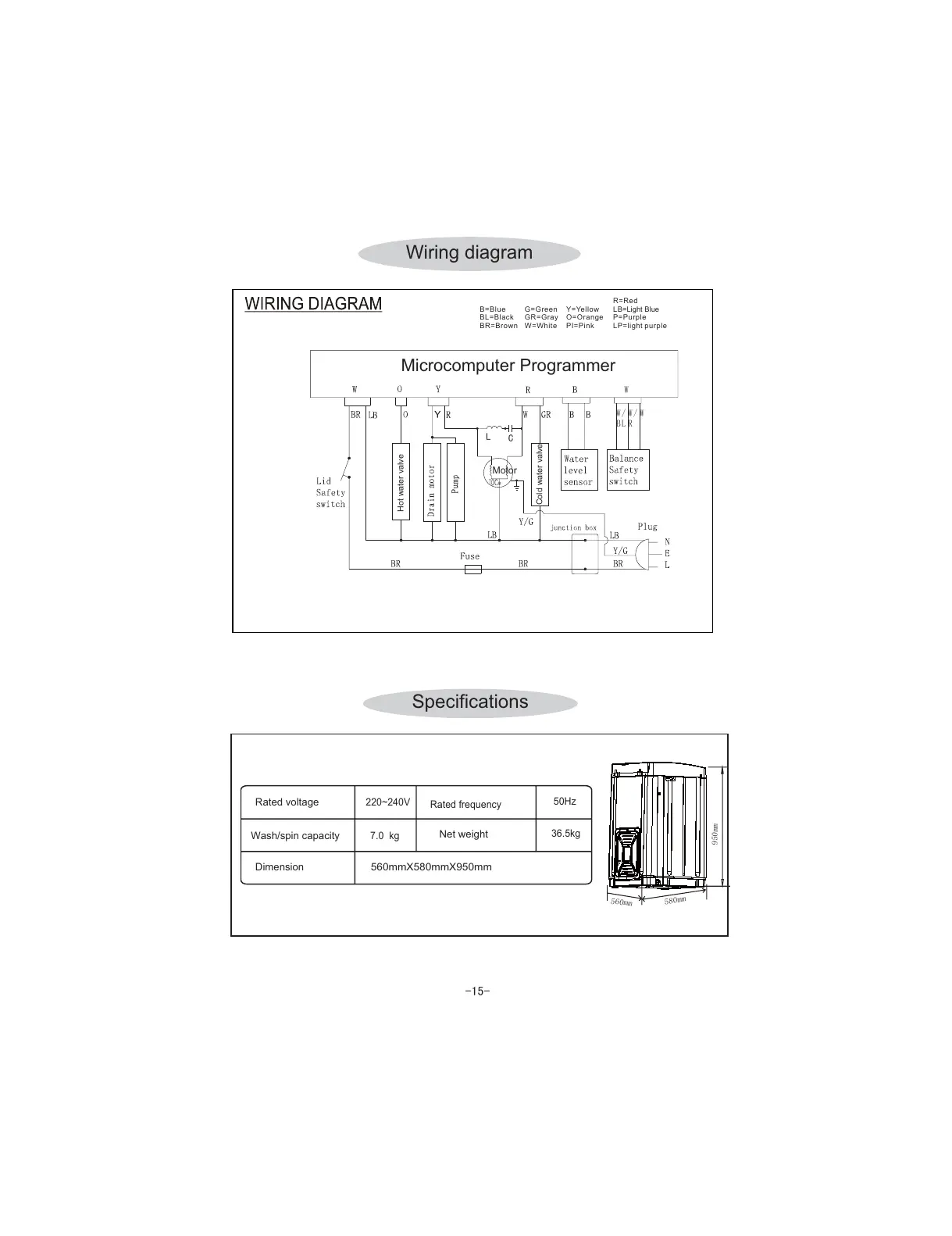

Wiring diagram
Specifications
560mm
580mm
950mm
Rated voltage
Wash/spin capacity
Rated frequency
220~240V
7.0 kg
50Hz
Net weight
560mmX580mmX950mm
36.5kg
Dimension
B=Blue
BL=Black
BR=Brown
G=Green
GR=Gray
W=White
Y=Yellow
O=Orange
PI=Pink
R=Red
LB=Light Blue
P=Purple
LP=light purple
Motor
&
/
Microcomputer Programmer
W
W/
BL
W/
R
W
Hot water valve
Cold water valve
