Read cover

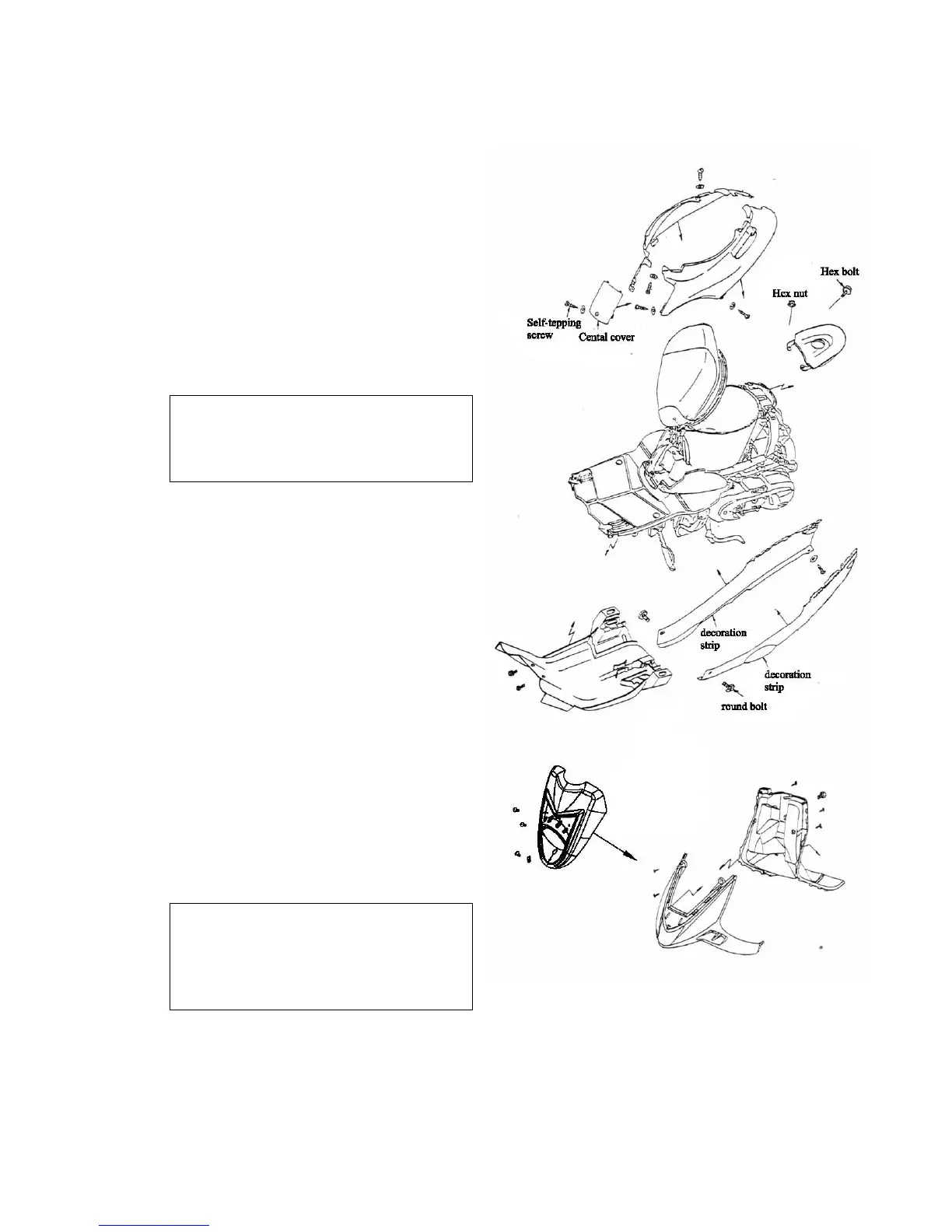

* Open the seat.
* Remove the 2 hex-nuts, 1 bolt to
remove the luggage rack.
* Remove 10 self-tapping screws and 2
round-headed bolts..
* Remove the central and body cover
* Install with reverse sequence.
＊ATTENTION ：
- Please do keep away the unit of the body
and the pedal from damages.
- Before tightening the screws, be sure of
correct matching of all units.
Cowling
* Remove 4 tapping screws and 2 round-
head bolts.
* Separate the joint of inner parts and
remove the cowling.
* Install with reverse sequence.
Front Cover
* Remove 4 tapping screws and 3 hex-
nuts.
* Separate the joint of inner parts and
remove the cowling.
* Install with reverse sequence.
＊ATTENTION ：
- Be sure of not damaging the front pane
land the front inner union (the convex
and concave portions).
- While tightening the screws, be sure of
the matching with the luggage case.
