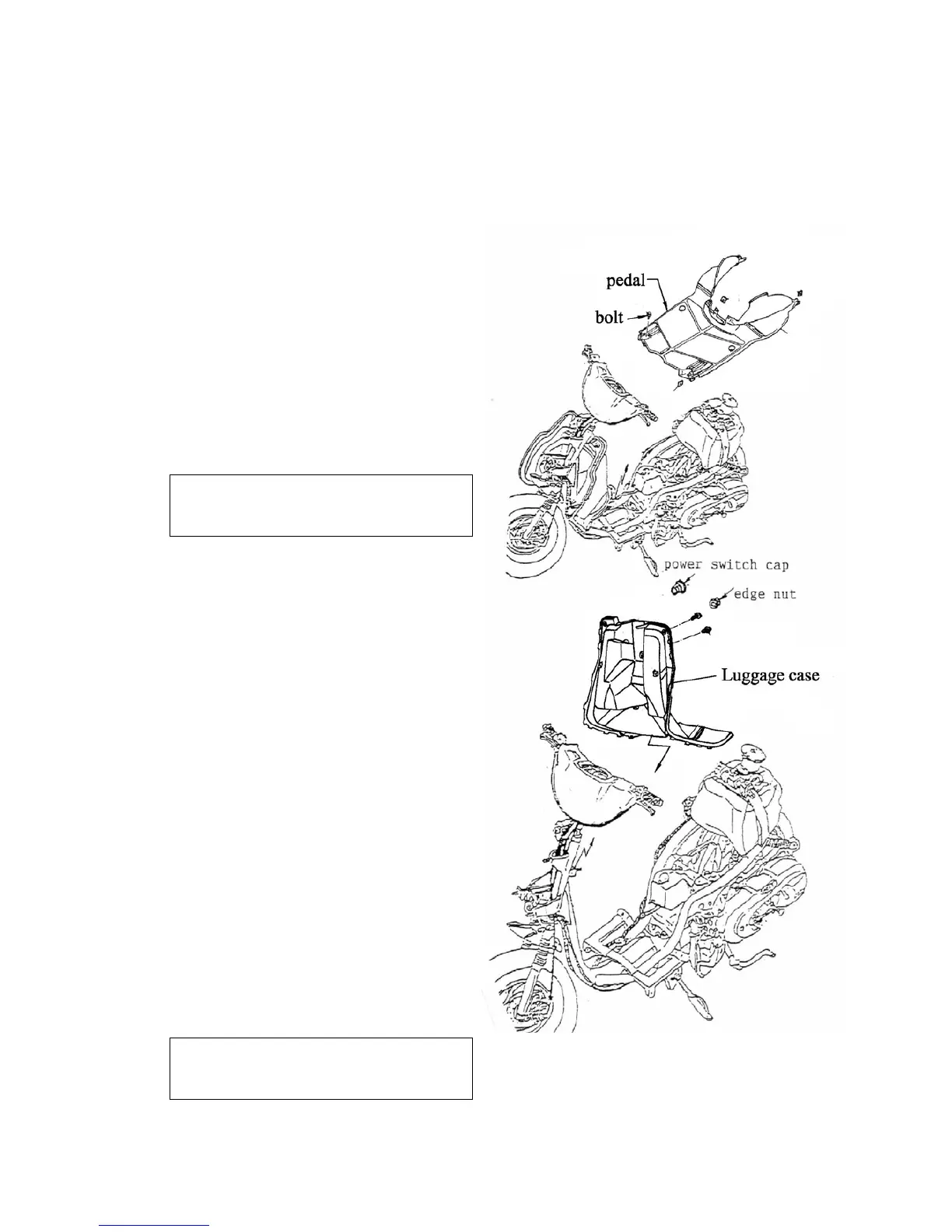

Floor panel
* Remove the L/R side cover and body
cover.
* Remove 4 hex bolts.
* Separate the front interior covering joint
(the claw and the groove) and remove
the pedal.
* Follow the sequence in reverse order for
assembly.
＊ATTENTION
：
- After joining the pedal and the front
interior covering, mount it onto the
chassis.
Luggage case
* Open the luggage case cover.
* Remove 4 tapping screws and 1nut,
separate the join with the chassis (the
concave and the convex) and remove
the front cover.
* Remove the main switch cap.
* Follow the sequence in reverse order for
assembly.
＊ATTENTION
：
- Be sure the joint of front cover and
cowling jointing correctly before tie-up
the screws and nuts.
