4.2 Exhaust filter guard
Removal and installation of the exhaust filter
guard:
NOTE - Safety precautions:
Observe the safety instructions!
Check decontamination of the unit!
Removal:
1. Shut the unit down.
2. Mark the position of the exhaust filter guard [2] on
the cabinet housing.
3. Remove the four retaining screws [1] and lift off
the exhaust filter guard.
Installation:
4. Place the exhaust filter guard [2] over the exhaust
opening [3] and secure it with the screws.
NOTE - Unit commissioning:
Prior to the commissioning of the unit:
Perform test run!
Check safety devices for proper opera-
tion!
4. Replacement of defined spare parts

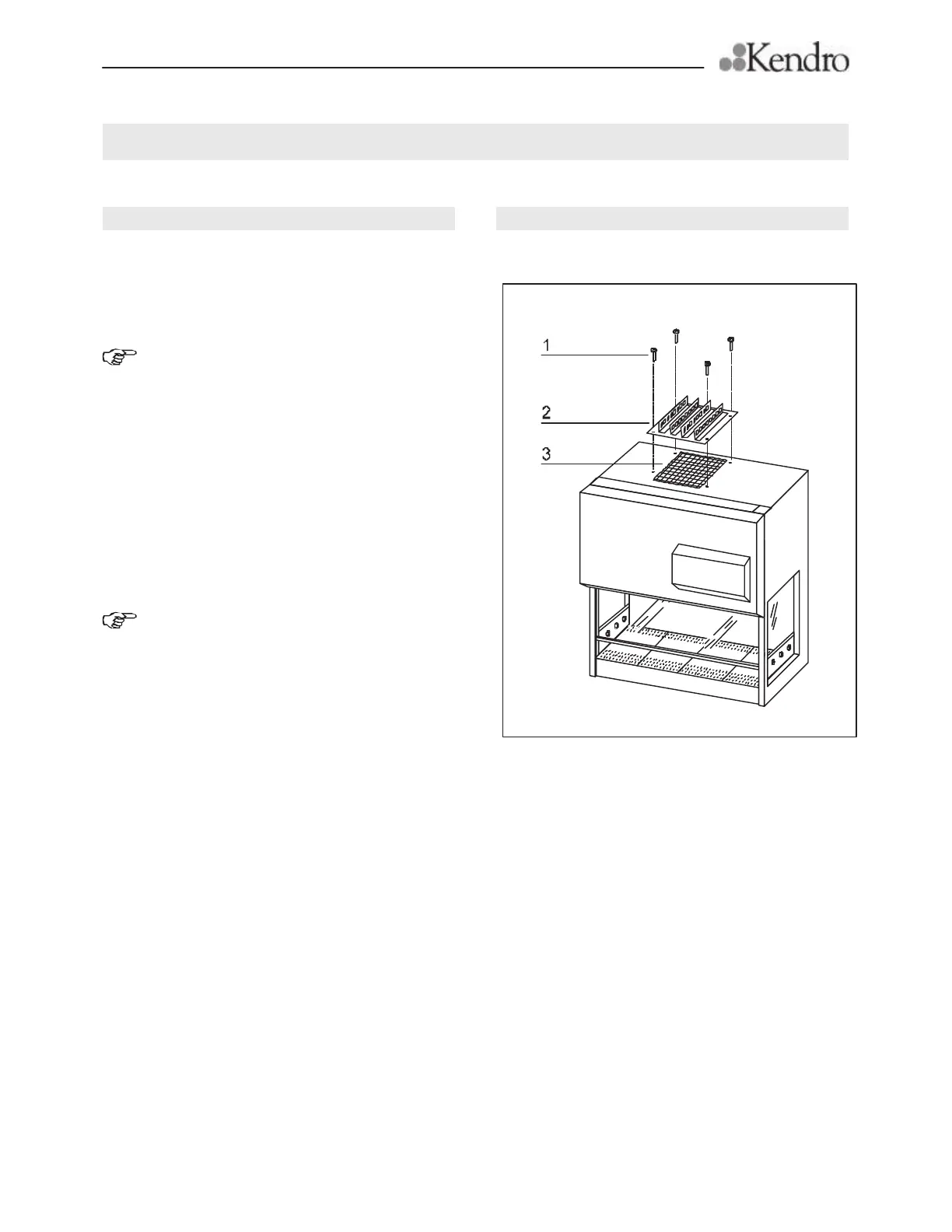

Figure 7
Fig. 7, Removal and installation of exhaust filter
guard
