Hercules DJCONTROL INPULSE T7 - Connectors

41

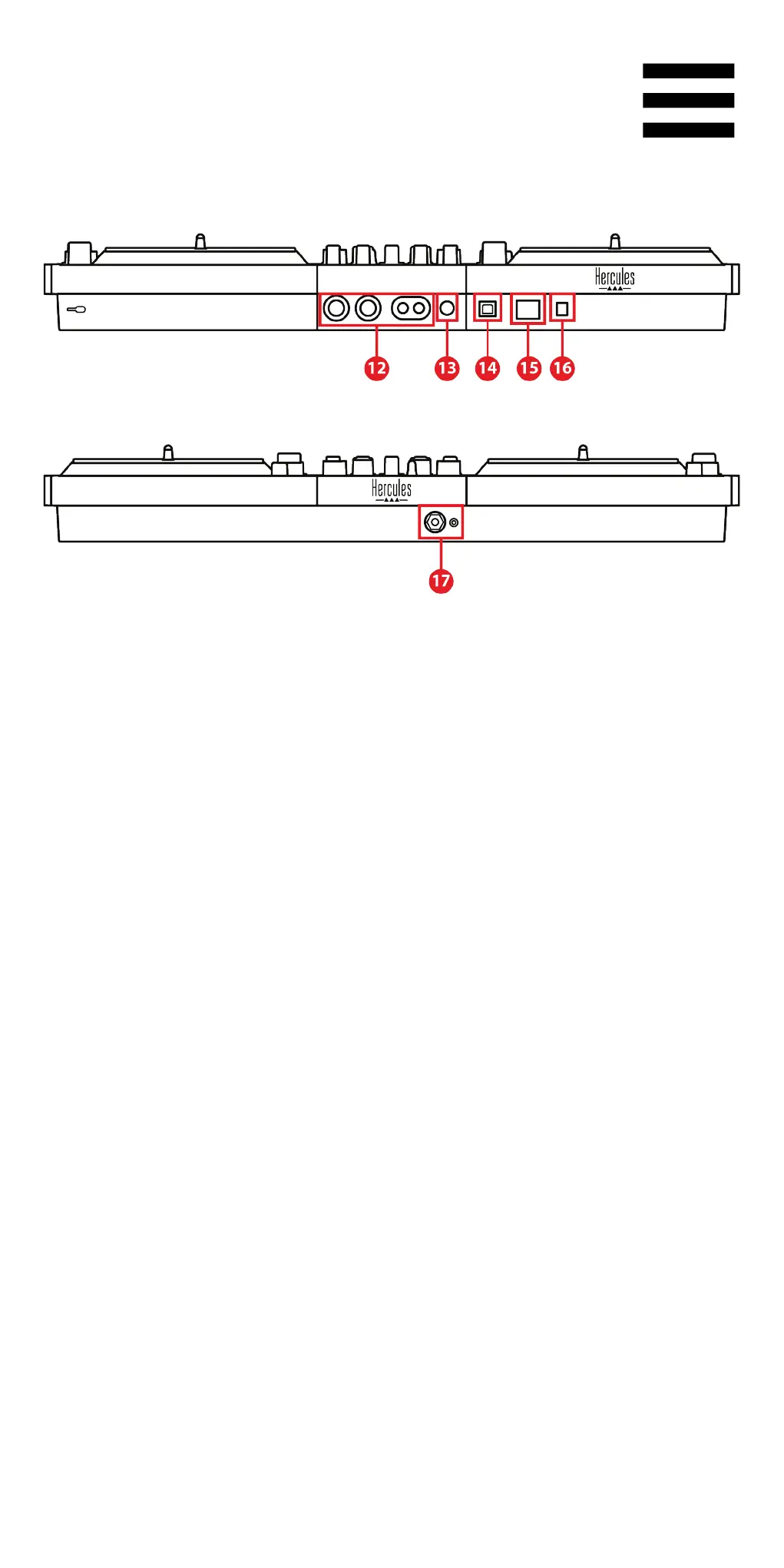

Connectors
12. Master output for speakers (output 1-2)
13. Balanced microphone input
14. USB-B 2.0 port
15. POWER button
16. Connector for power adapter
17. Headphones output (output 3-4)
Master output for speakers (output 1-2): lets you
connect active speakers.
Formats: 2 x unbalanced RCA (Cinch) and 2 x balanced
XLR.
Balanced microphone input: lets you connect a
balanced or unbalanced microphone.
Format: ¼” / 6.35 mm jack.
