Page 11For technical questions, please call 1-888-866-5797.Item 59313

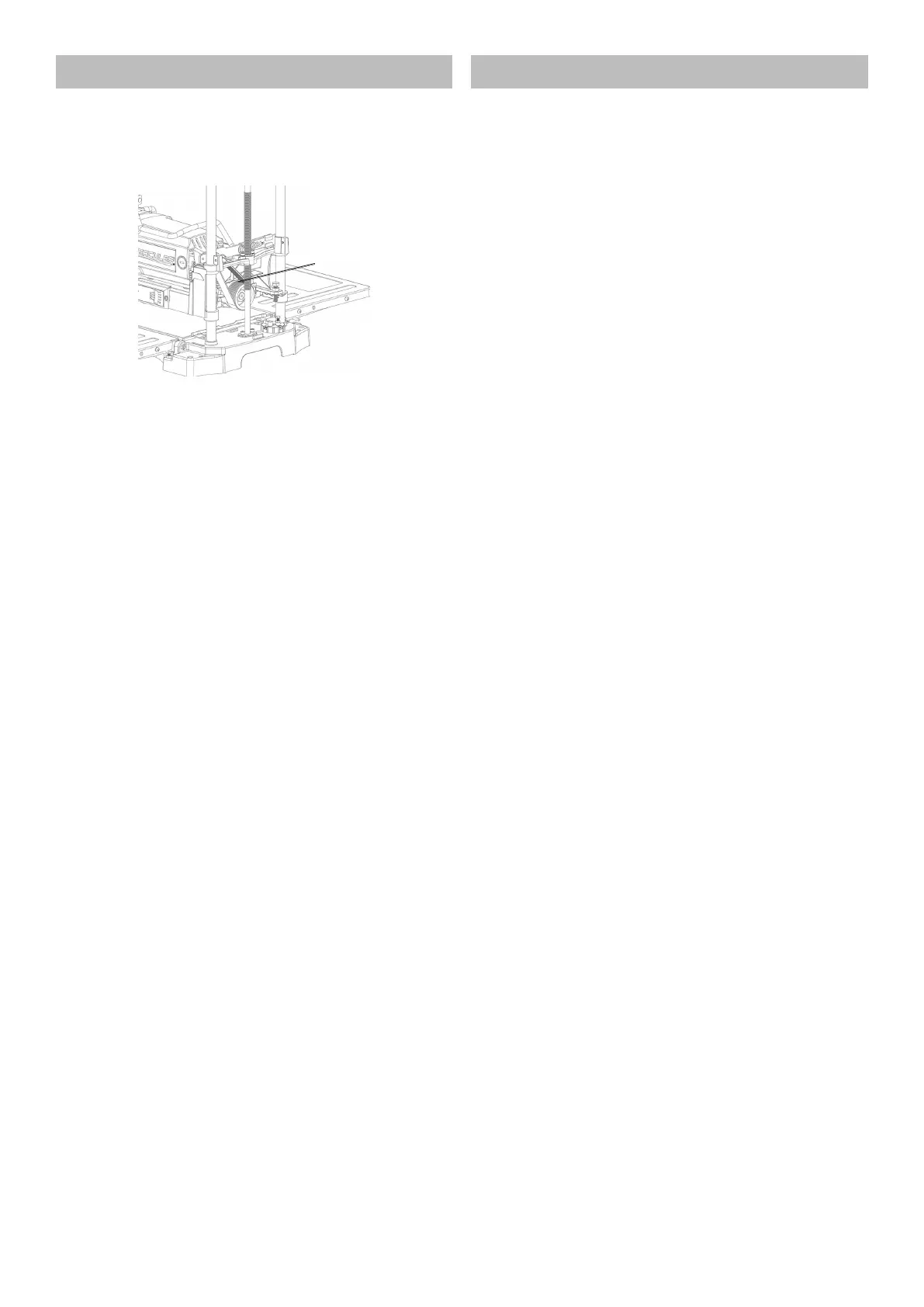

Replacing V-Belt
1. Remove right Side Cover.
2. Move Belt back and forth on pulleys, while pulling
Belt away from pulleys, one groove at a time.
V-belt
3. Put new Belt on upper pulley, then move
Belt back and forth onto lower pulley, while
pushing it onto pulley, one groove at a time.
4. Replace Side Cover.
Correcting Snipe
1. Slightly elevate the infeed and outfeed table ends and
place a sacrificial board at each end of the workpiece.
2. Run the board in at a 15-30° angle. While inserting
the board into the planer, lift both ends up slightly.
3. If snipe can not be avoided, mill the lumber
a few inches longer and leave enough
sacrificial material so that it can be cut out.
