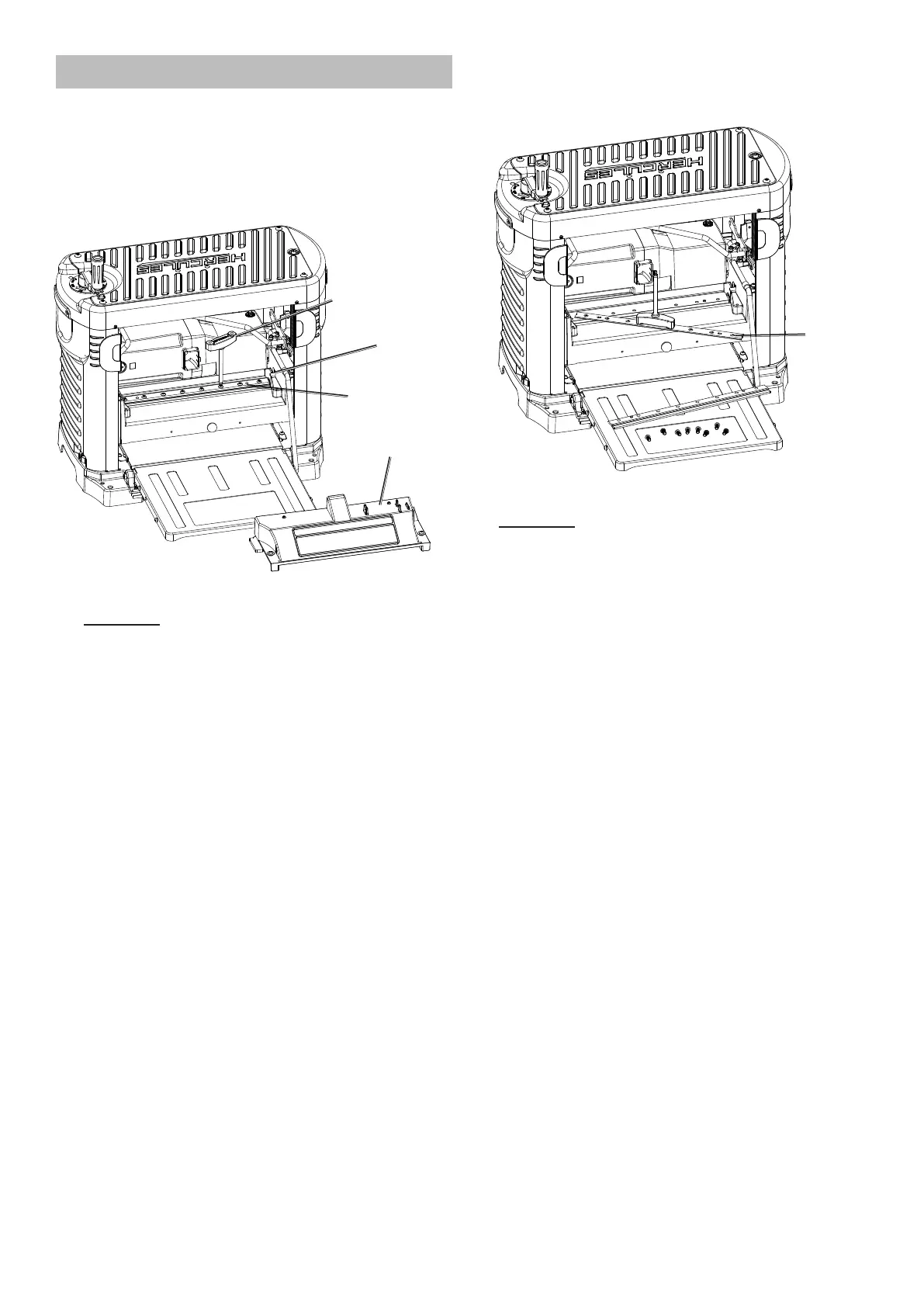

Installing or Replacing the Blade
1. Turn Planer off and unplug from its electrical outlet.
2. Remove Screws on Blade Guard sides,
and Knob Screws from Dust Chute.
3. Remove Dust Chute and Blade Guard from unit.
Gib
T-Wrench
Blade
Guard
Cuterhead
Release
Switch
CAUTION! Blades are very sharp and are
double-edged! Wear heavy-duty leather work
gloves at all times when handling a blade.
4. Wearing gloves, push the Cutterhead
Release Switch and rotate Cutterhead
toward you until it locks into place.
5. Using included T-Wrench, remove eight
Screws on Gib, then flip wrench over
and use the magnet to remove Gib.
Blade
CAUTION! Change all three Blades
at the same time. Changing Blades
individually could result in imbalance.
6. Using magnet, remove Blade, rotate or
replace, placing holes over Tabs.
7. Replace Gib and eight Screws,
tighten Screws securely.
8. Push Cutterhead Release Switch to allow
rotation to the remaining Blades.
9. Replace Blade Guard and two Screws,
then tighten Dust Chute.
