Page 4 M6#(/'.N0$."&(O3'-/$60-F(*&'"-'(."&&(;4PPP4PQQ4RSTSK Item 56214
GROUNDING
5,(Y>9!9?5(9L9\5>@\()8,\7(=?W(
W9=58(M>,2(@?\,>>9\5(A>,G?W@?AB(
\N'.V(I$/N("(O3"&$U$'+('&'./#$.$"0($U(E63(
"#'($0(+63%/("-(/6(IN'/N'#(/N'(63/&'/($-(
*#6*'#&E(1#630+'+K((W6(06/(H6+$UE(/N'(*6I'#(.6#+(
*&31(*#6C$+'+(I$/N(/N'(/66&K((?'C'#(#'H6C'(/N'(
1#630+$01(*#601(U#6H(/N'(*&31K((W6(06/(3-'(/N'(/66&(
$U(/N'(*6I'#(.6#+(6#(*&31($-(+"H"1'+K((@U(+"H"1'+F(
N"C'($/(#'*"$#'+(%E("(-'#C$.'(U".$&$/E(%'U6#'(3-'K((@U(
/N'(*&31(I$&&(06/(U$/(/N'(63/&'/F(N"C'("(*#6*'#(63/&'/(
$0-/"&&'+(%E("(O3"&$U$'+('&'./#$.$"0K

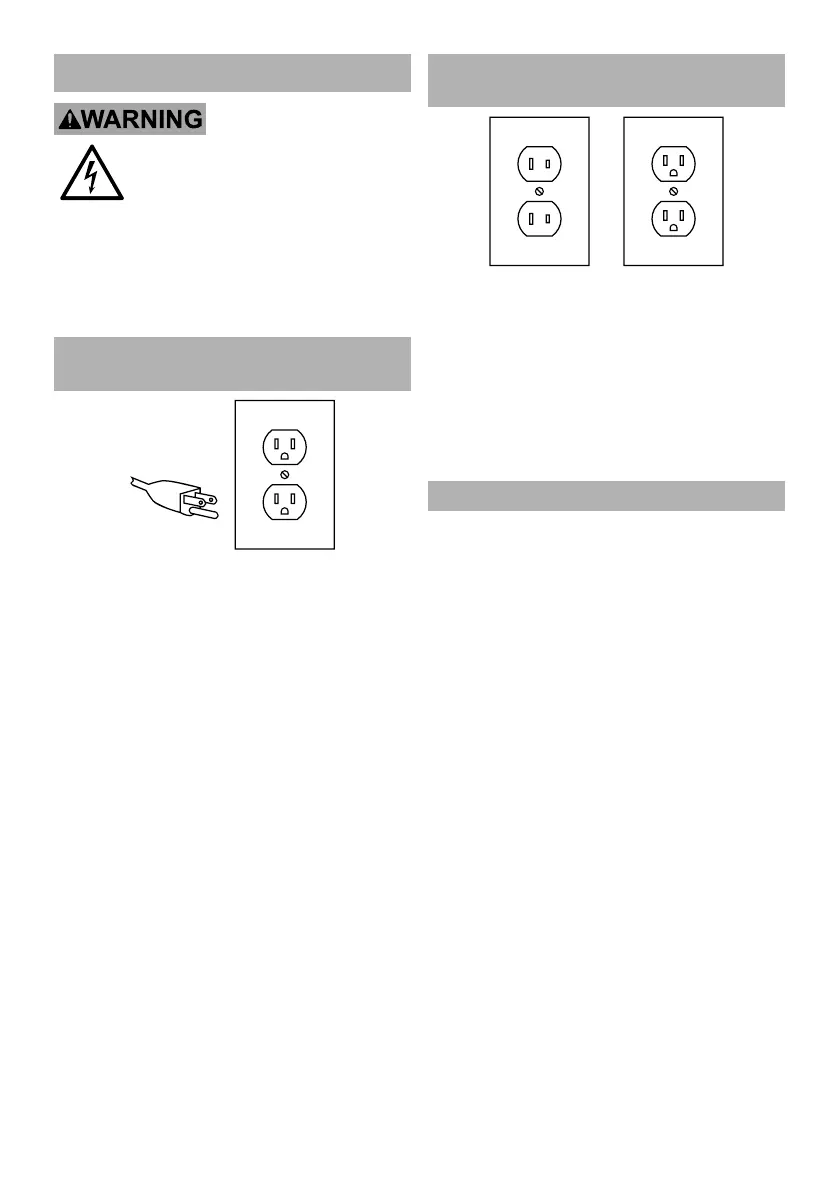

Grounded Tools: Tools with
Three Prong Plugs
^4Y#601(Y&31("0+(,3/&'/
1. Tools marked with “Grounding Required” have
a three wire cord and three prong grounding
plug. The plug must be connected to a properly
grounded outlet. If the tool should electrically
malfunction or break down, grounding provides
a low resistance path to carry electricity away
from the user, reducing the risk of electric
shock. Z)''(^4Y#601(Y&31("0+(,3/&'/K[
2. The grounding prong in the plug is connected
through the green wire inside the cord to the
grounding system in the tool. The green wire
in the cord must be the only wire connected
to the tool’s grounding system and must
never be attached to an electrically “live”
terminal. Z)''(^4Y#601(Y&31("0+(,3/&'/K[
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet
should look like those in the preceding illustration.
Z)''(^4Y#601(Y&31("0+(,3/&'/K[
Double Insulated Tools: Tools
with Two Prong Plugs
,3/&'/-(U6#(_4Y#601(Y&31
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies OSHA
requirements and complies with the applicable
standards of Underwriters Laboratories, Inc.,
the Canadian Standard Association,
and the National Electrical Code.
2. Double insulated tools may be used in either of the
120 volt outlets shown in the preceding illustration.
Z)''(,3/&'/-(U6#(_4Y#601(Y&31K[
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. Z)''(5"%&'(=K[
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. Z)''(5"%&'(=K[
4. When using more than one extension cord to make
up the total length, make sure each cord contains at
least the minimum wire size required. Z)''(5"%&'(=K[
5. If you are using one extension cord for more
than one tool, add the nameplate(amperes
and use the sum to determine the required
minimum cord size. Z)''(5"%&'(=K[
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W-A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
