FRONT BRAKE (Drum Type)

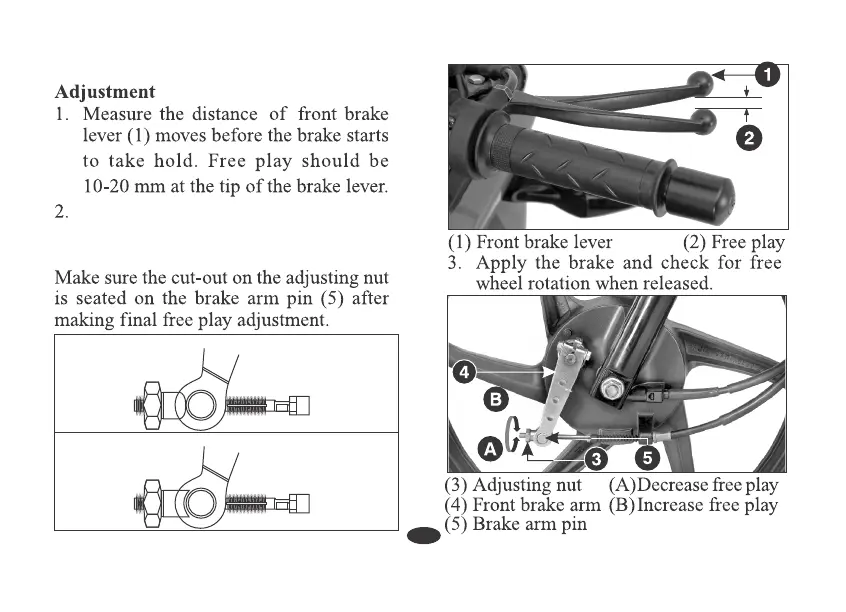

Adjust free play (2) by turning the
adjusting nut (3) at the front brake
arm (4).
CUT-OUT IMPROPERLY INSTALLED
CUT-OUT PROPERLY INSTALLED
