48

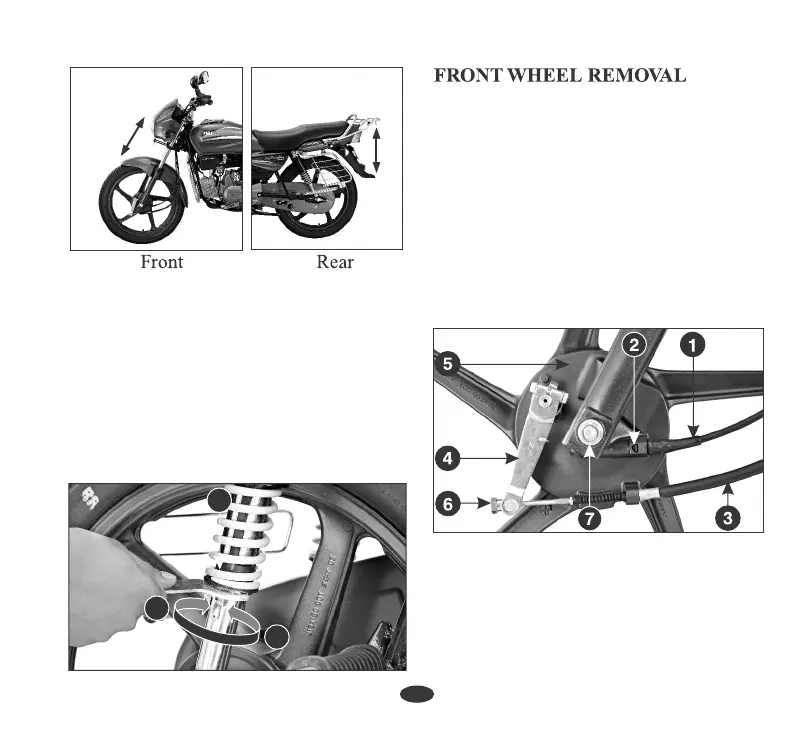

Rear Shock Absorber Adjustment
• In direction A Stiffer
Rear shock absorber adjustment can be
made according to the load/road conditions.
• In direction B Softer
NOTE
Always adjust both the rear shock
absorbers to the same position. Use the rear
shock absorber adjustment tool (Pin
Spanner) (1) available in the tool kit.
(1) Pin spanner
A
B
1
3. Disconnect the brake cable (3) from
brake arm (4) and brake panel (5) by
removing the front brake adjusting nut
(6).
5. Remove the axle and then remove the
wheel.
1. Raise the front wheel off the ground.
2. Remove the speedometer cable (1) by
pressing tab (2) & pulling cable out.
4. Remove the axle nut (7).
(7) Axle nut
(4) Brake arm
(1) Speedometer cable
(5) Brake panel
(6) Front brake adjusting nut
(2) Tab
(3) Front brake cable
