TRANSPORTATION, HANDLING, INSTALLATION
41

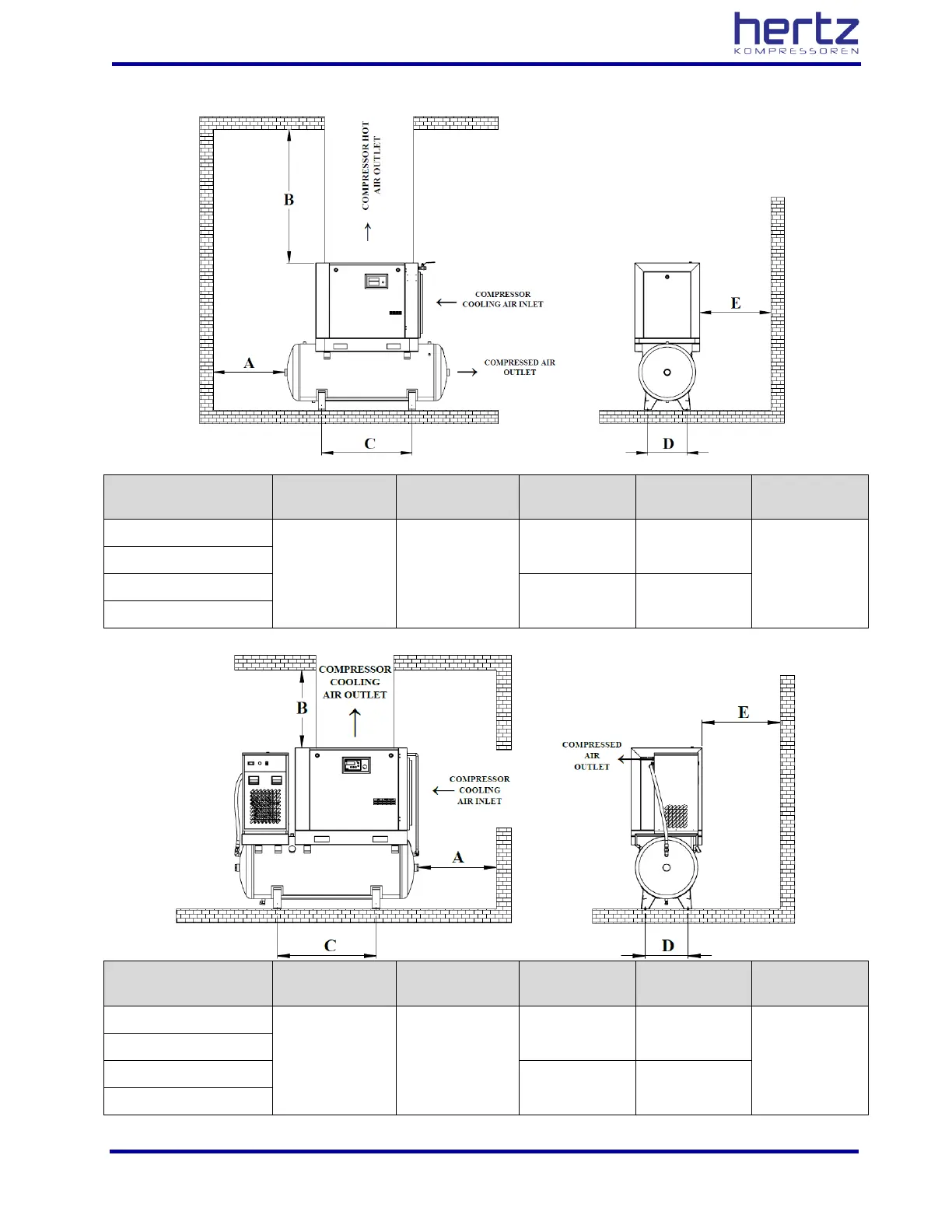

6.5 Compressor Layout Plans
Compressor
Model
A
(mm/in)
B
(mm/in)
C
(mm/in)
D
(mm/in)
E
(mm/in)
HVD 5
1000(39.37)
1000(39.37)
1000(39.37)
370(14.56)
1000(39.37)
HVD 7
HVD 11
1015(39.96)
440(17.32)
HVD 15
Compressor
Model
A
(mm/in)
B
(mm/in)
C
(mm/in)
D
(mm/in)
E
(mm/in)
HVD 5
1000(39.37)
1000(39.37)
1000(39.37)
370(14.56)
1000(39.37)
HVD 7
HVD 11
1015(39.96)
440(17.32)
HVD 15
