Heta Ambition 5 - 1.18 Stove data table; 1.19 Guarantee; 1.20 Parts - Doors

14
1.18 Stove data table in accordance with en 13240 testing
Tested as a freestanding oven and with uninsulated flue
Stove type Nominal
fluegas
temperature
C°
Flue
mm
Fuel
volume
kg
Draft
min.
mbar
Nominal
output
tested
kW
Actual
efficiency
%
Distance to flamable materials Stove
weight
kg
at the
sides
mm
rear the
stove
mm
to
furnitures
mm
Ambition 5 200 ø125 1,2 0.12 4,9 85 400 200 1100 98
Ambition 8 250 ø125 1,8 0.12 6,5 80 400 225 1100 110
The nominal output is the output to which the stove has been tested.
Testing is conducted with the combustion air around 61% open for Ambition 5 and 69% open for Ambition 8.

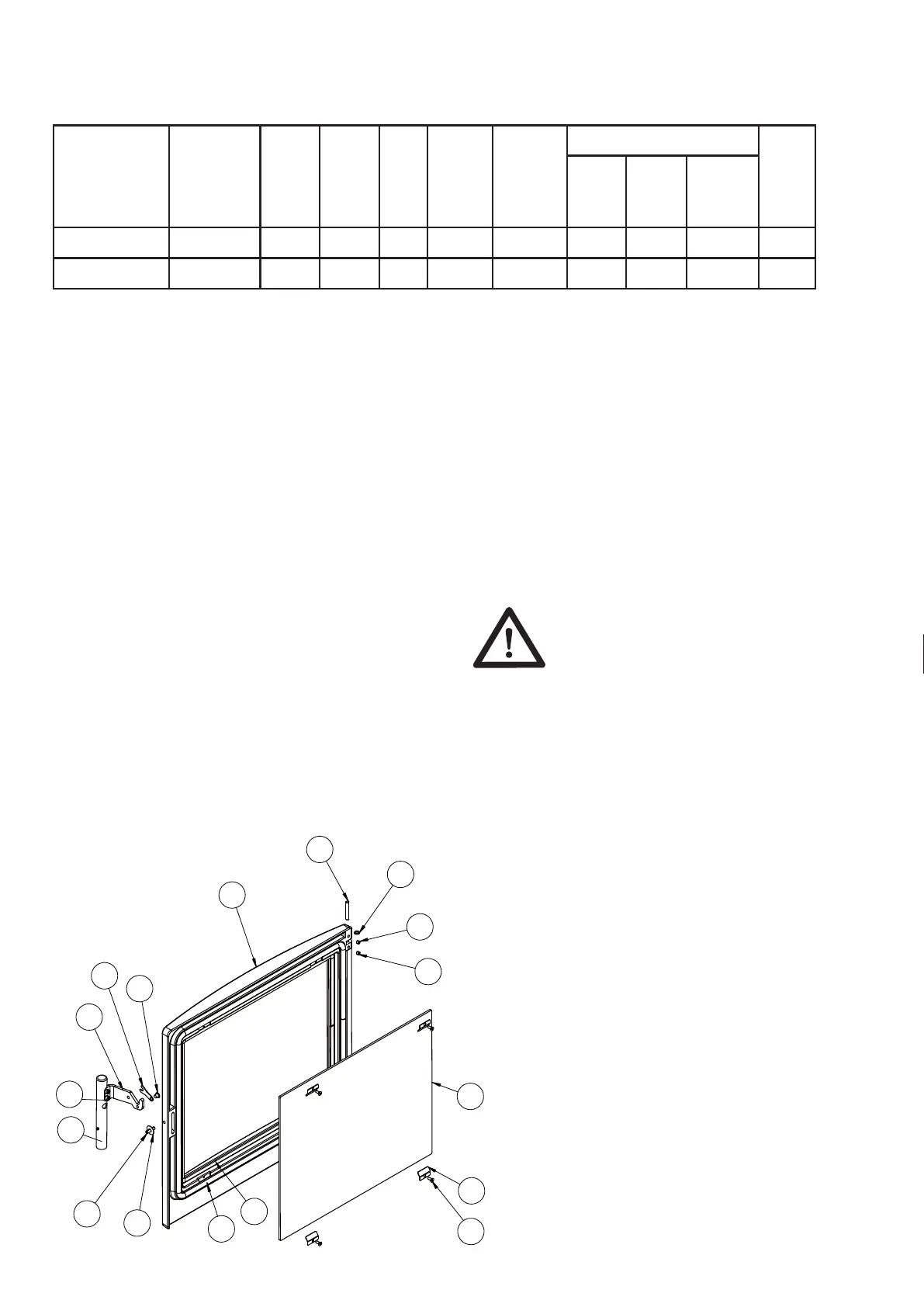

1.20 Parts - Doors
5
6
8
11
8
2
15
7
14
12
10
13
1
9
16
3
4
Pos. No. Name Qty.
1 0030-000034 Stove door
2 0021-000170 Glass 1
3 0023-000356 Door gasket L=1.7 m 1
4 0023-000358 Glass gasket L=1.6 m 1
5 0008-9086 Hinge pin ø6x40 SS 2
6 0016-0031 Handle 1
7 1013-0732 Door hock 1
8 0008-1007 Flat screw M6x6 4
9 0008-0040 M5x10 Ch 2
10 0008-9015 Pin ø5x26 1
11 0008-3503 Brass disc M6/6,4/11/1,6 1
12 1013-0733 ABracket by hook 1
13 0008-9042 Disc spring ø18/ø6.2x0.4 1
14 0008-0014 M6x6 with flat head 1
15 1013-0529 Glass clips 4
16 0008-2004 UH M4x10 indv. 6kt 4
1.19 Guarantee
Heta wood stoves, subjected to a strict quality
control during production and before delivery to
the dealer.
Therefore, the stoves guarantee is
FOR FIVE YEARS
Against defects in manufacturing
The guarantee does not cover:
Wearing parts / fragile parts such as:
- Vermiculite stones in the combustion
chamber, glass, seals and the casted bottom
or shaking grate.
- Damage caused by improper use.
- Transportation costs for warranty repair.
- Assembly / disassembly of warranty repair.
Should you have cause to make a complaint,
please quote our invoice no.
Warning
Any unauthorized alterations to the
stove and the use of non-original
parts will void the warranty.
