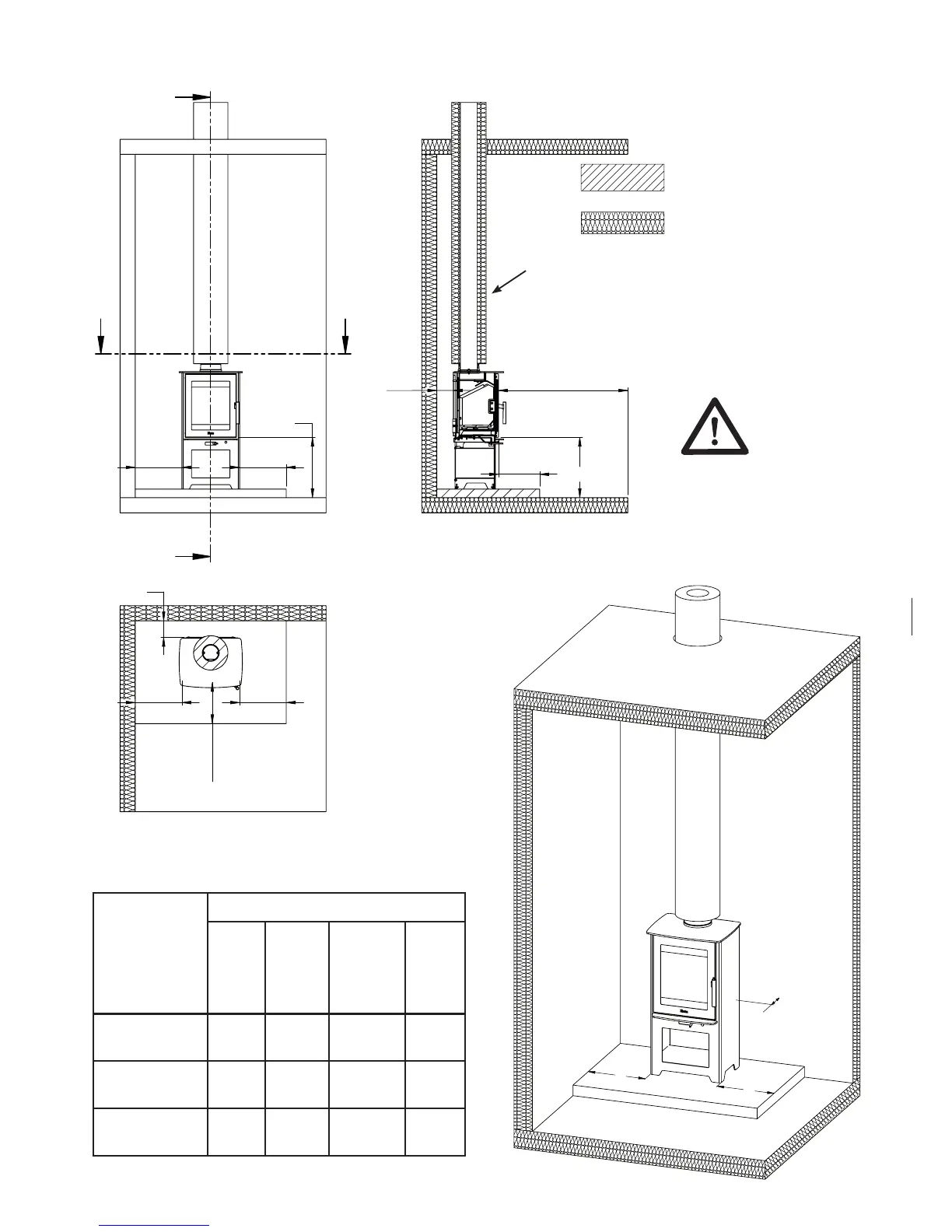

2.7 Clearances for installation EN 13 240 - Inspire 40H-45H-55H
B B
C
A
A
BB
D
C
A
Min.
300
Snit A-A
A
B B
Min. 300
Snit B-B
Not combustible material
Combustible material
- Insulated flue
The dimensions are the
minimum dimensions,
unless otherwise stated.
B
B
A
Stove
Minimum
dimensions i
mm
Distance to flamable materials
A
rear the
stove
B
at the
sides
C
door bot-
tom to
combus-
tible floor
D
to furni-
tures
Inspire 40H
120*/
190
340*/
400
170 900
Inspire 45H
150*/
195
300 120 860
Inspire 55H
150*/
220
420 430 1200
* Installed with an insulated flue.
Clearances
