Heta Scan-line 8 - Parts - Doors

15
Pos. No. Name Qty.
1 0008-0021 Flanged M5x10 BN 11252 2
2 0008-0036 Cylinder screw M4x6 BN 1206 2
3 0008-0045 Countersunk screw M5 X10 BN20 2
4 0008-0054 Clanged M6x10 BN 11252 3
5 0008-0099 Countersunk M5 X12 BN 20 4
6 0008-1114 M 6 x 20 2
7 0008-1117 M 6 x 10 8
8 0008-2001 Stainless M3 countersunk 10
9 0008-2304 Machine screw M4 x 6 torx 6
10 0008-9082 Hinge pins 2
11 0021-0061 Glass 1
12 0023-3008 Door gasket 1
13 0023-3023 Glass gasket 1
14 0030-2625 Handle 1
15 0030-2622 Bracket for handle 1
16 1013-0432 Glass clips, small 6

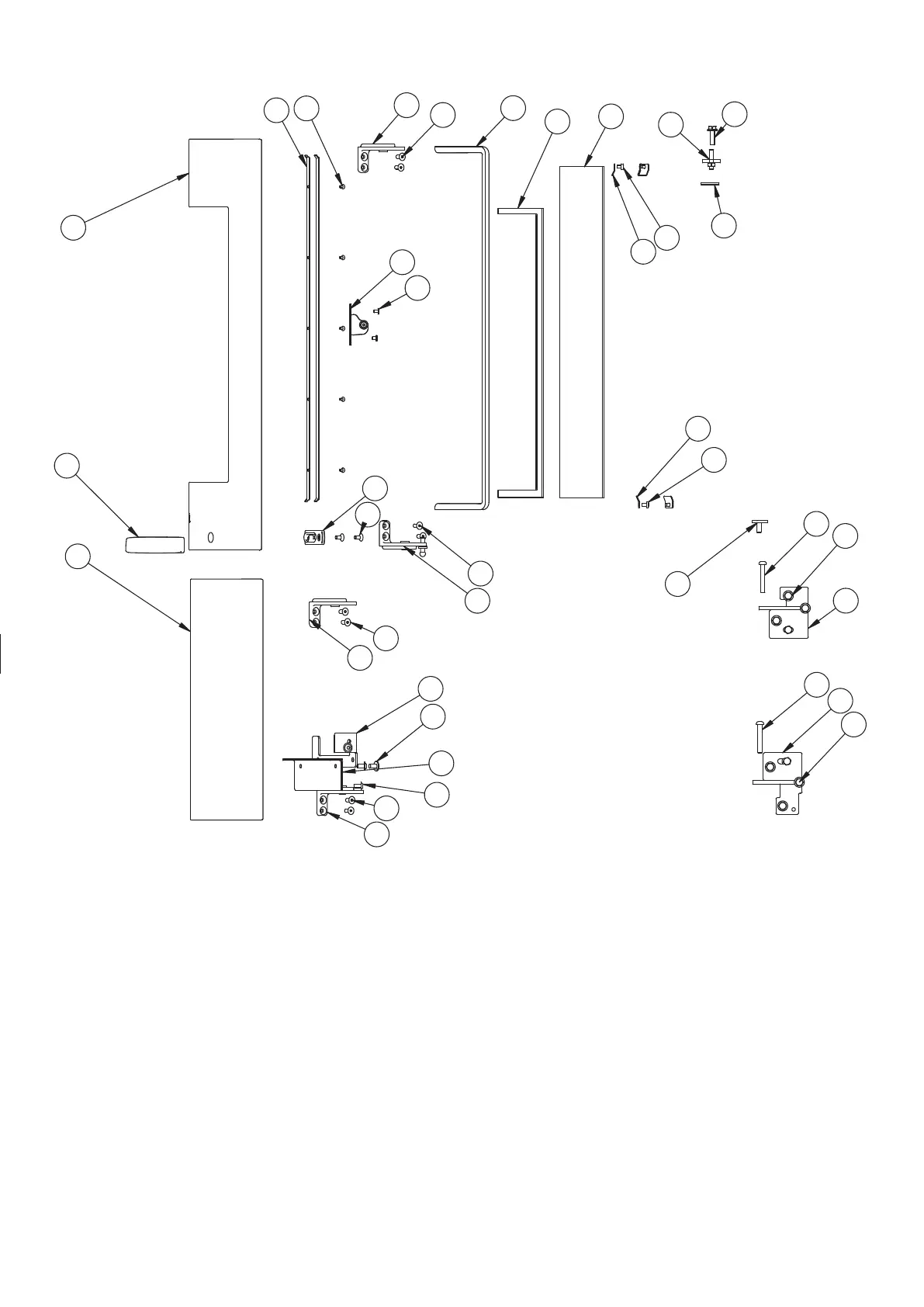

1.23 Parts - Doors
23
5
19
8
26
2
12
13
11
16
9
6
29
20
15
3
24
5
32
31
14
21
1
17
18
4
25
31
27
10
7
10
7
28
30
16
9
22
Pos. No. Name Qty.
17 1013-0907 Bracket handle 1
18 1013-0908 Bracket 2 handles 1
19 1013-0932 Door gasket mounting rails 2
20 1027-0496 Spacer top 1
21 1505-0083 Ash door 1
22 1505-0088 Stove door 1
23 1513-0132 Upper hinge 1
24 1513-0133 Hinge for automatic door closing 1
25 6000-018891 Lower hinge 1
26 1513-0135 Closing roller 1
27 1513-0138 Welded hinge ash door bottom 1
28 1513-0139 Hinge ash door top 1
29 1513-0141 Mounted hinge top 1
30 1513-0142 Mounted hinge pin bottom 1
31 0008-0108 Flanged BN 11252 4
32 6000-018890 Hinge, ash door top 1
