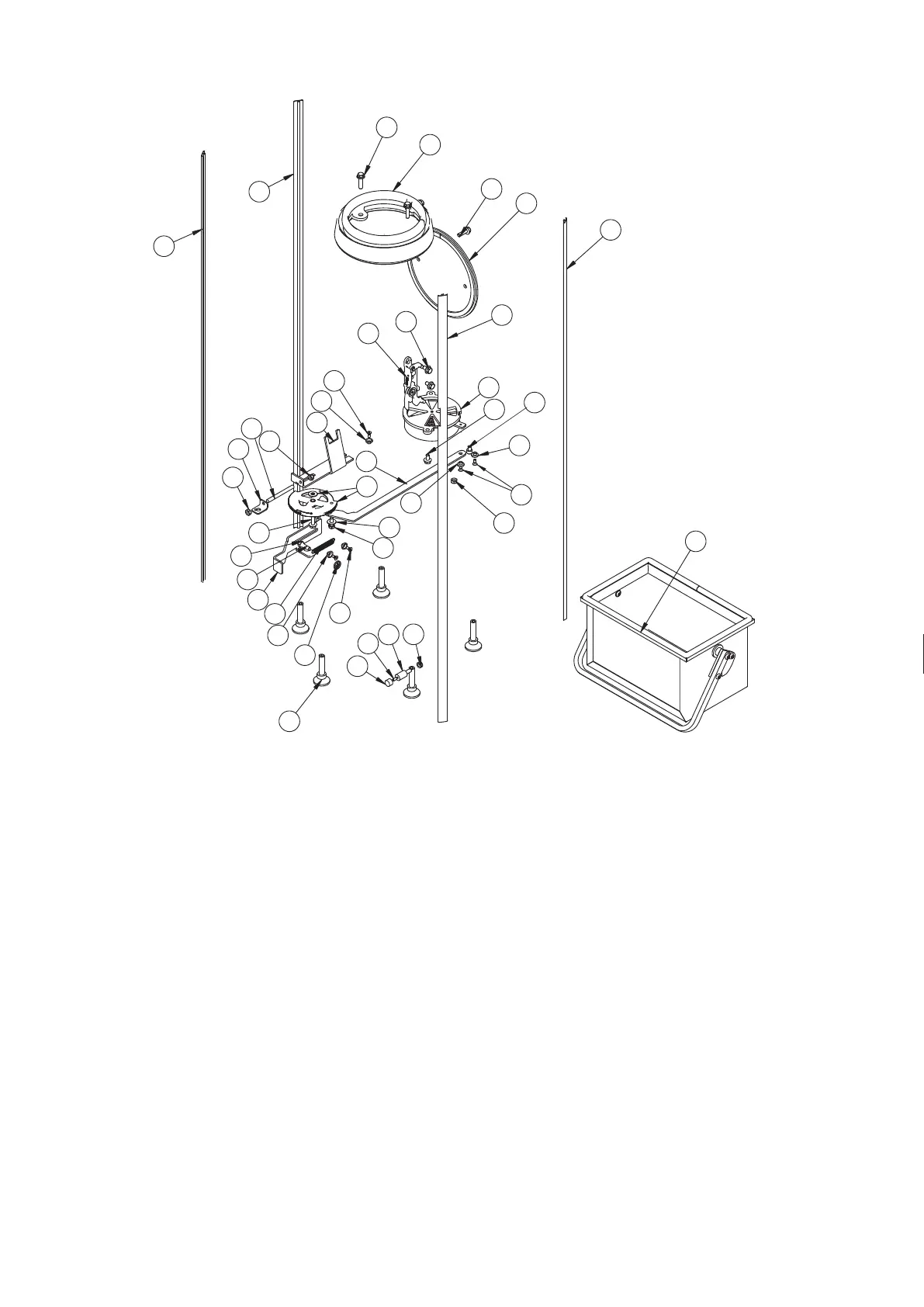

Parts - Internal parts
Pos. No. Name Qty.
1 0008-0008 Set screw M 4 x 8 1
2 0008-0017 Countersunk screw M4x10 BN 20 5
3 0008-0041 M6 X 8 allen 1
4 0008-0211 M6x16 BN 54 1
5 0008-0501 1/4 X 1.1 washer M6 2
6 0008-0903 Hinge pin M6x28 1
7 0008-1114 M 6 x 20 3
8 0008-1115 M 6 x 25 2
9 0008-1117 M 6 x 10 4
10 0008-1402 Nut M6 4
11 0008-9019 Glider for shoot 5
12 0008-9066 Quick Lock Ø6 1
13 0008-9067 Tension spring 1x8x60 1
14 0015-2035 Magnet 1
15 0015-3003 Adjustment screw M10 x 40 5
16 0016-0140 Spacers magnet 1
17 1013-0873 Shaker bracket 1
10
16
14
28
7
29
8
23
20
26
20
20
9
24
29
9
10
11
3
22
2
11
2
11
17
10
18
21
10
25
4
5
7
19
6
10
13
12
2
11
1
15
Pos. No. Name Qty.
18 1013-0904 Bracket for riddling 1
19 1013-0921 Door hold 1
20 1020-0123 Aluminum rail 3
21 1021-0080 Shaker pin 1
22 1027-0491 Connect louver 1
23 1512-0014 Outlet cover 1
24 1513-0123 Self-closing 1
25 1513-0136 Air control 1
26 1520-0039 Machined aluminum rail 1
27 1525-0025 Flue 1
38 4018-0046 Ash container 1
29 4027-0046 Air intake 1
