HEXING CIU EV800 - Page 21

User manual for G3
16

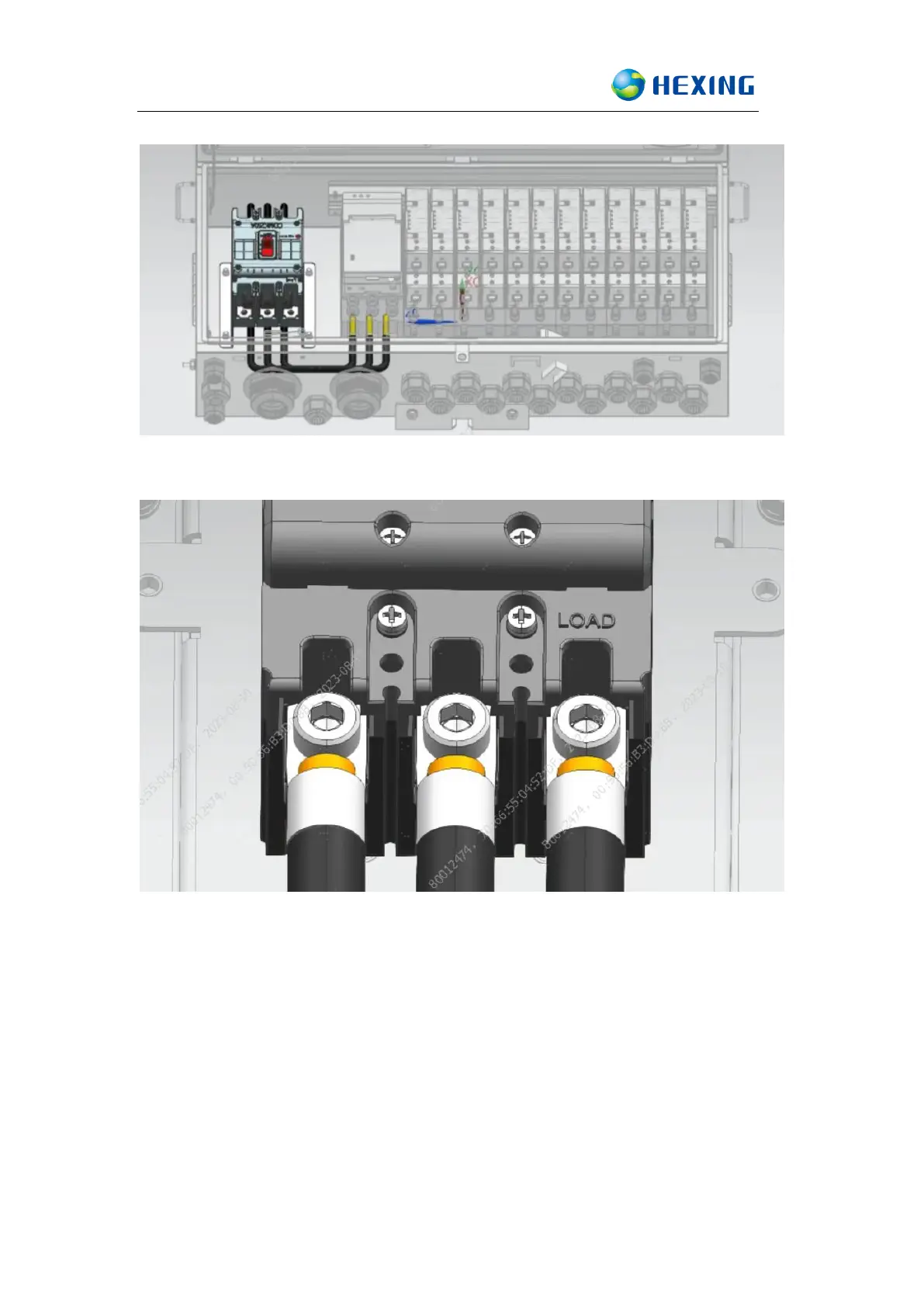

Once the meter cabinet is configured with main circuit breaker, the power input
cable shall be crimped with an OT terminal to connect with the breaker.
The OT terminal type shall depends on the cable dimension. Here we use the
70mm2 cable and OT terminal as OT70-10. Three M8 screws in input side
has diameter as 8mm.
