HEXING CIU EV800 - Data Collector LED Indication

User manual for G3
37

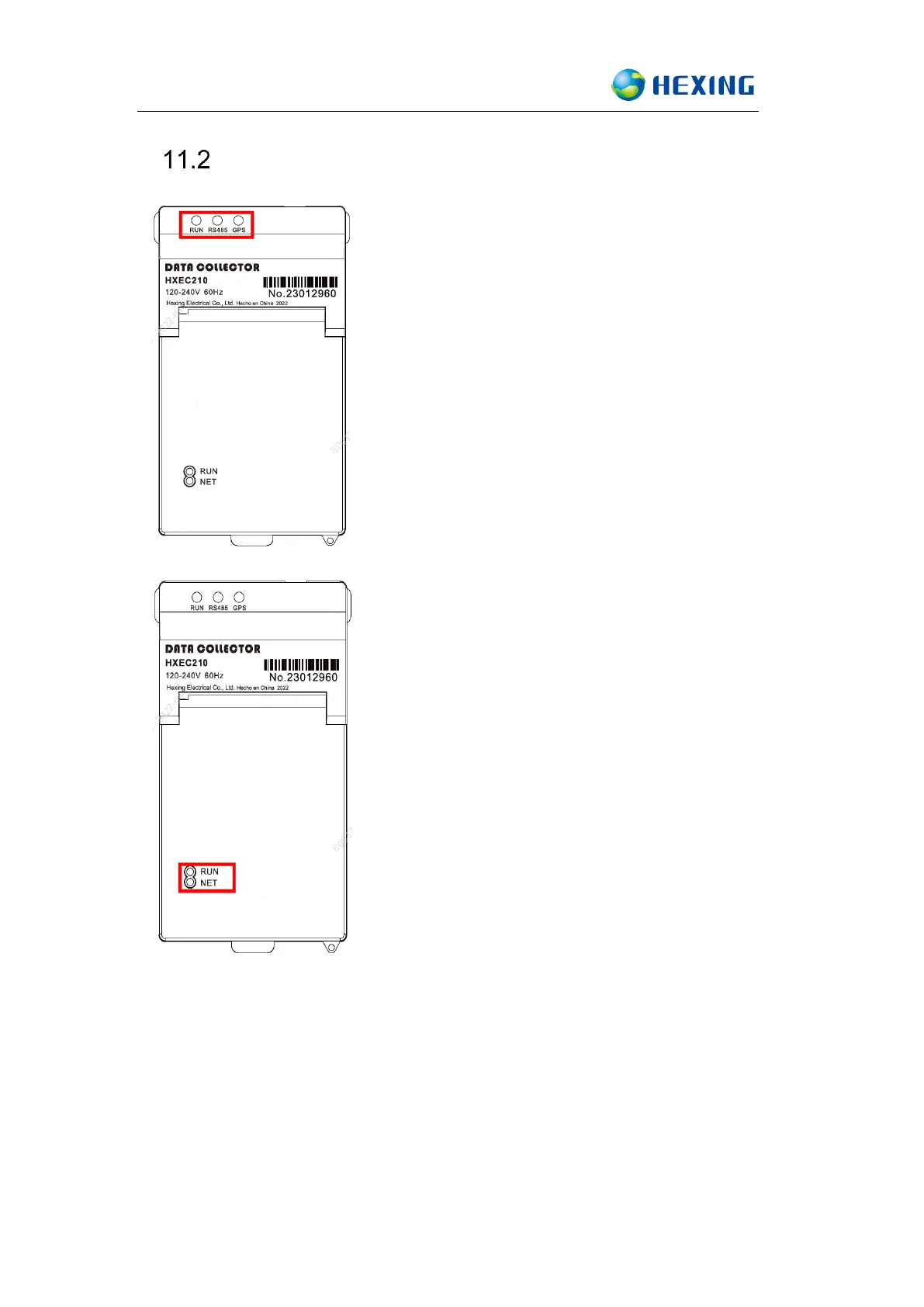

Data Collector LED indication
a) Data collector LED:
① Run:
⚫ Blinking red indicates normal running status
② RS485:
⚫ Blinking red indicates data receiving
⚫ Blinking green indicates data sending
③ GPS:
⚫ Red light on indicates didn’t received GPS info
⚫ Light off indicates it got GPS info
b) 3G/4G Communication module LED:
① RUN:
⚫ Green light on indicates module is running.
⚫ Light off indicates the module is not working
② NET:
⚫ Green light on for 200ms at once indicates
searching network
⚫ Green light on for 1800ms at once indicates
standby mode
⚫ Green light blinks quickly (125ms on and off)
indicates data transfer mode
c) Wi-SUN Communication module LED:
① RUN:
⚫ Green light on indicates module is running.
⚫ Light off indicates the module is not working
② NET:
⚫ Green light blinking indicates transmitting or receiving data(Tx/Rx)
