Installation
16
Internal design Testomat
®
808

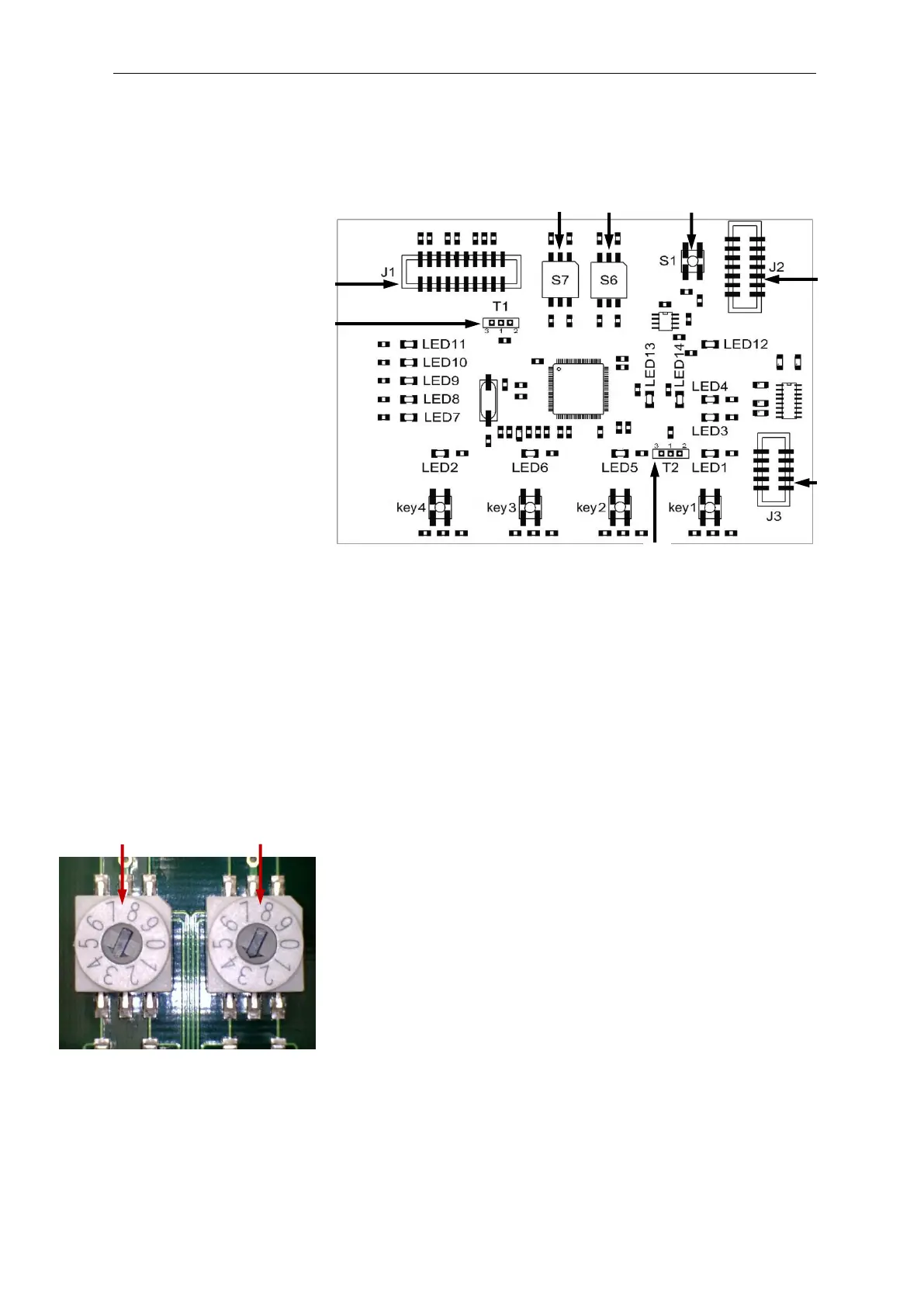

Rear of the controller board
Keys 1 to 4 are located at the front of the board. Please refer to the
section entitled “Functions of the operating and display elements” on
page 9 for a detailed description of its operating system and the
display elements.
The following function keys and slide switches as well as plug
connectors are also provided:
Reset key S1
Use reset key S1 to execute a reset, i.e. to reset the firmware of
Testomat
®
808 after an update.
Function key S6
Use function key S6 to set the interval pause between
measurements. Please refer to the section entitled “Interval pause”
on page 31 for an overview of possible switching positions and
interval pauses. (The standard setting is 3.)
Function key S7
Use function key S7 to set the switching behaviour of the relays 1
and 2. Please refer to the section entitled “Switching functions of the
relays 1 and 2” on page 24 for an overview of possible switching
positions. (The standard setting is 3.)
