Installation
19
Inputs EXT. LÖSCH. and STOPP
Please refer to the section entitled “Description of the signal inputs”
on page 23 for a description of the inputs “Ext. lösch. (delete
externally)” and “Stopp” .
Terminal block
Please refer to the sections entitled “Connecting the mains voltage”
on page 19 and “Connecting the inputs and outputs” on page 21 for a
description of the terminal block .

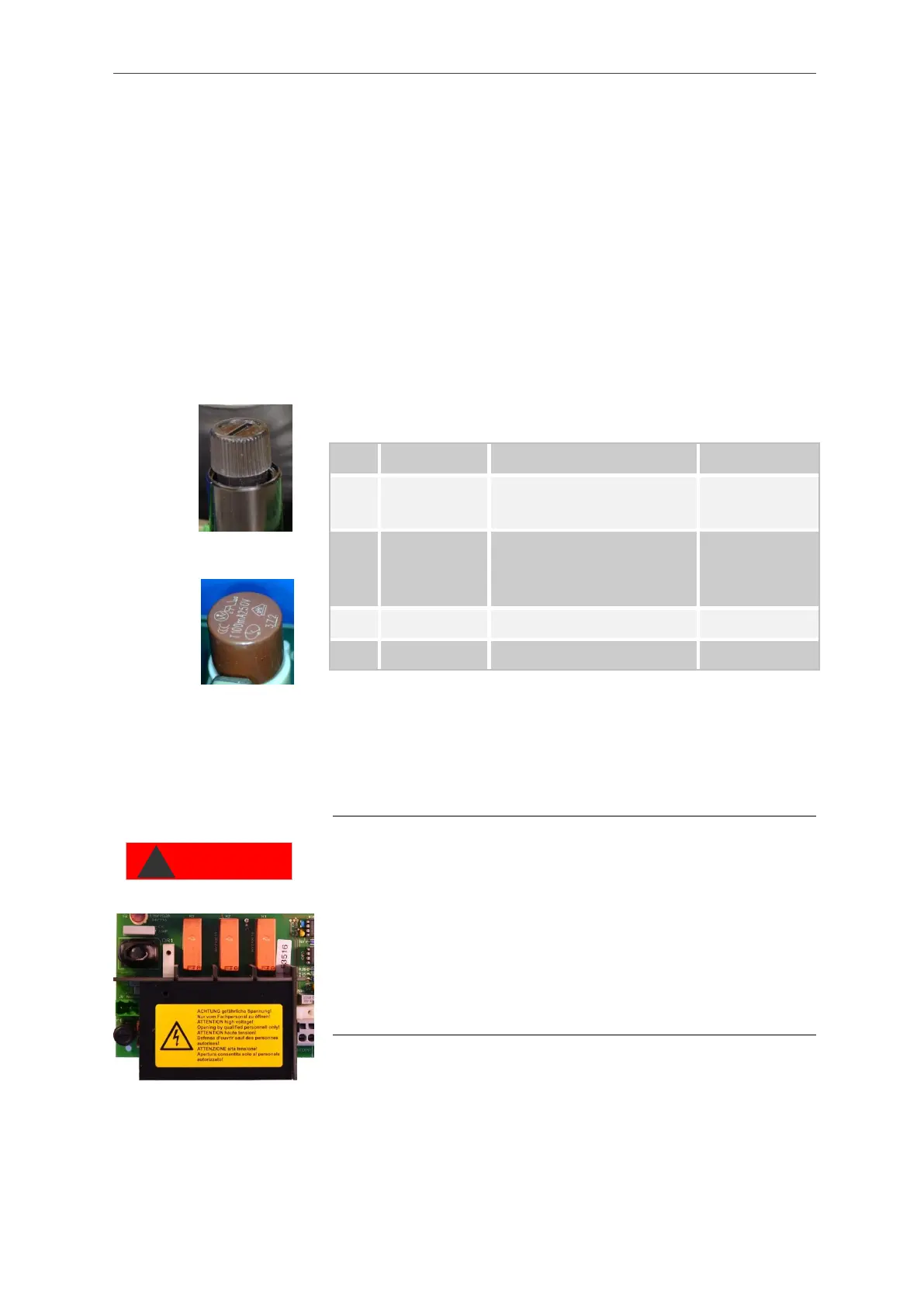

Fuses
The following fuses can be found on the base circuit board.
Please refer to the section entitled “Testomat
®
808 2019 spare parts
and accessories” on page 42 for the article numbers when reordering
fuses.
Connecting the mains voltage
Installation of the terminal compartment cover
For safety reasons, it is imperative to reinsert the terminal
compartment cover after connecting the mains voltage and the
system components, as the terminal compartment contains cables
that are connected to hazardous voltages. In doing so, you eliminate
unintended contact with the terminals and contact of two lines of
different voltages and prevent a fatal electric shock.
Please also ensure that the cables are not pinched when
installing the terminal compartment cover!
Only connect the instrument to the specified mains voltage. Refer to
the rating plate for the appropriate mains voltage. Connect the cables
as follows:
Open the housing cover and subsequently loosen the two
fastening screws at the top and bottom of the door to the interior of
Testomat
®
808. The door can now be opened and the terminal box
accessed.
