Elfin-EG1X 用户手册
http://www.iotworkshop.com - 11 -
2.5. RS485 Interface
RS485 use two wire links, A(DATA+), B(DATA-). Connect A(+) to A(+), B(-) to B(-) for communication.
Suggest to connect GND together when interference is very severe.
The RS485 interface support maximum 32 485 device, device. The cable maximum length is 1200
meters. Need to add 120Ohm terminal resistor for over 300 meters.
2.6. Mechanical Size

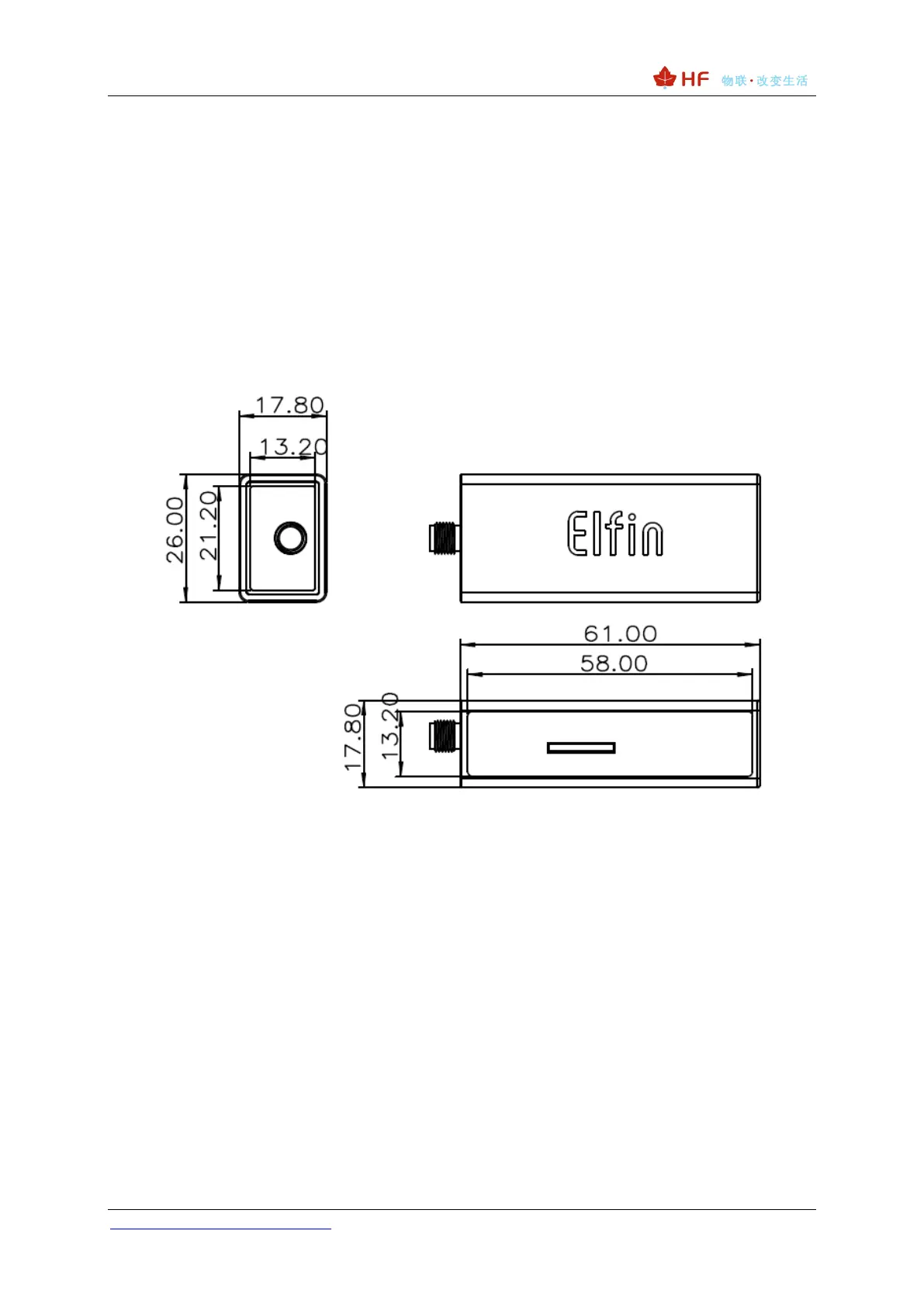

The dimensions of Elfin-EG1X are defined as following pictures(mm):
Figure 5. Elfin-EG1X Mechanical Size
2.7. RJ45 8PIN Connector
RJ45 8PIN Connector Type Order: 10810001001
