8
CDR-850
•
LOADING MECHANISM ASSY PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.

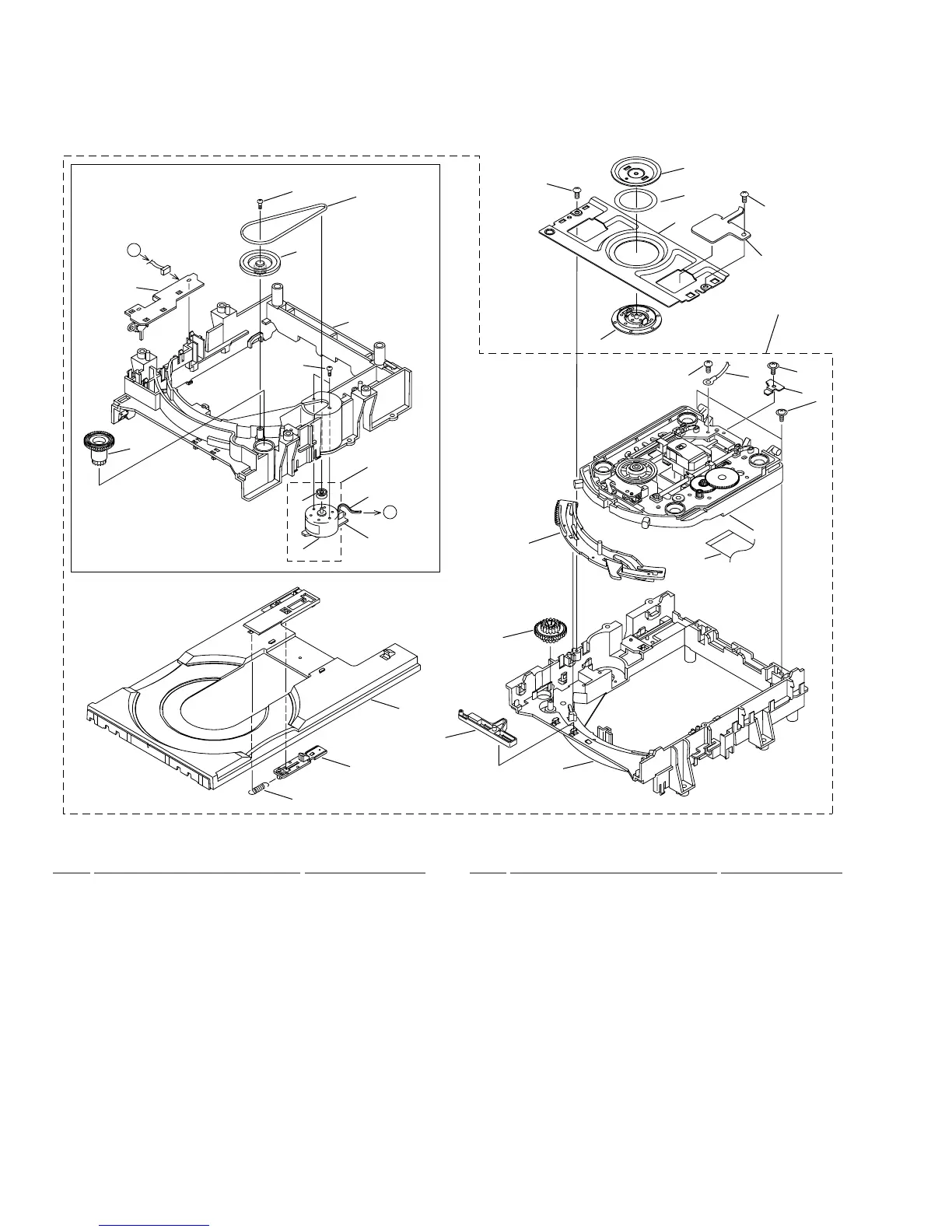

2.4 LOADING MECHANISM ASSY
• Bottom View
8
17
11
3
21
28
9
23
30
22
24
5
2
18
20
12
Loading Base
13
6
4
26
26
29
25
19
15
1
14
16
10
7
27
A
A
31
5
1 32P F•F•C/30V PDD1187
NSP 2 Earth Lead Unit PDF1088
3 Connector Assy PG02KK-E35
4 DC Motor PXM1027
5 Screw DBA1006
6 Motor Pulley PNW1634
7 Screw VBA1055
8 Tray Stopper Spring VBH1277
9 Rubber Belt VEB1260
10 Loading Base VNL1730
11 Tray VNL1731
12 Gear Pulley VNL1733
13 Loading Gear VNL1734
14 Drive Gear VNL1735
15 Drive Cam VNL1736
16 Lock Plate VNL1820
17 Tray Stopper VNL1739
NSP 18 CD-RW SERVO MECH Assy PXA1609
19 Screw BBZ26P040FMC
20 Screw IPZ20P080FMC
21 Loading Motor Assy VXX2505
NSP 22 Loading Mechanism Assy PXA1608
23 Clamper Plate VNE2068
24 Bridge VNE2069
25 Clamper VNL1738
26 Screw IPZ26P060FMC
NSP 27 LOADING A Assy PWZ3727
NSP 28 LOADING B Assy PWZ3728
29 Tray Holder PNM1341
30 Spacer PNM1334
31 Stopper DNH2076
