• SPECIFICATIONS
1. GENERAL
Model ....................................... Compact disc audio system
Applicable discs ......................... CDs, CD-Rs and CD-RWs
Power supply
U.S. models ...........................................AC 120 V, 60 Hz
European models ...................AC 220 – 230 V, 50/60 Hz
Power consumption...................................................... 24 W
Operating temperature .................................. +5°C to +35°C
(+41°F to 95° F)
Weight (without package)............................. 7.0 kg (15.4 lb)
Max. dimensions ............... 482 (W) x 393 (D) x 105 (H) mm
19 (W) x 15-1/2 (D) x 4-1/8 (H) in.
2. AUDIO UNIT
Frequency Response ........................ 2 Hz to 20 kHz ± 1 dB
Playback S/N............................................................. 109 dB
Playback Dynamic Range ........................................... 98 dB
Playback T.H.D. ..................................................... 0.0022%
Recording Analog S/N................................................. 92 dB
Recording Analog Dynamic Range ............................. 93 dB
Recording Analog T.H.D. ......................................... 0.006%
Recording Digital S/N ................................................ 108 dB
Recording Digital Dynamic Range .............................. 97 dB
Recording Digital T.H.D. ........................................ 0.0022%
XLR O/P level (0 dBfs: >10 kΩ load) .................. 20 ± 1 dBu
RCA O/P level (0 dBfs: >10 kΩ load) .................... 8 ± 1 dBu
Wow & Flutter...............................................Un-measurable
(±0.001% W.PEAK)
Number of channels .............................................. 2 (stereo)
All measurements are to EIAJ standards.
3. INPUT CONNECTORS
Analog XLR-3 type (input impedance: 10 kΩ)
Nominal level +4/–8 dBu switchable
Analog RCA Phono type (input impedance: 10 kΩ)
Optical Digital Input (SPDIF)
Coaxial Digital Input (SPDIF - impedance 75 Ω)
AES/EBU Digital Input (balanced - impedance 110 Ω)
Remote Control Connector ................................... 8 pin DIN
4. OUTPUT CONNECTORS
Analog XLR-3 type nominal level +4/–8 dBu (menu select)
Analog RCA Phono type
Optical Digital Output (SPDIF)
Coaxial Digital Output (SPDIF - impedance 75 Ω)
5. ACCESSORIES
÷ Power cord
÷ Remote control unit
÷ 2 x size AAA/R03 dry cell batteries
÷ 2 x audio cables
÷ Operating Instructions
÷ HHB CDR-74 silver disc
÷ HHB Recording Media Guide
÷ HHB Registration Card
6. PICK UP
÷ Laser wavelength (λ) ................................ 778 to 787 nm
÷ Object lens out (3 beam total) ............................... 23mW
÷ Laser class .................................................................IIIb
NOTE:
The specifications and design of this product are subject to
change without notice, due to improvements.
3
5

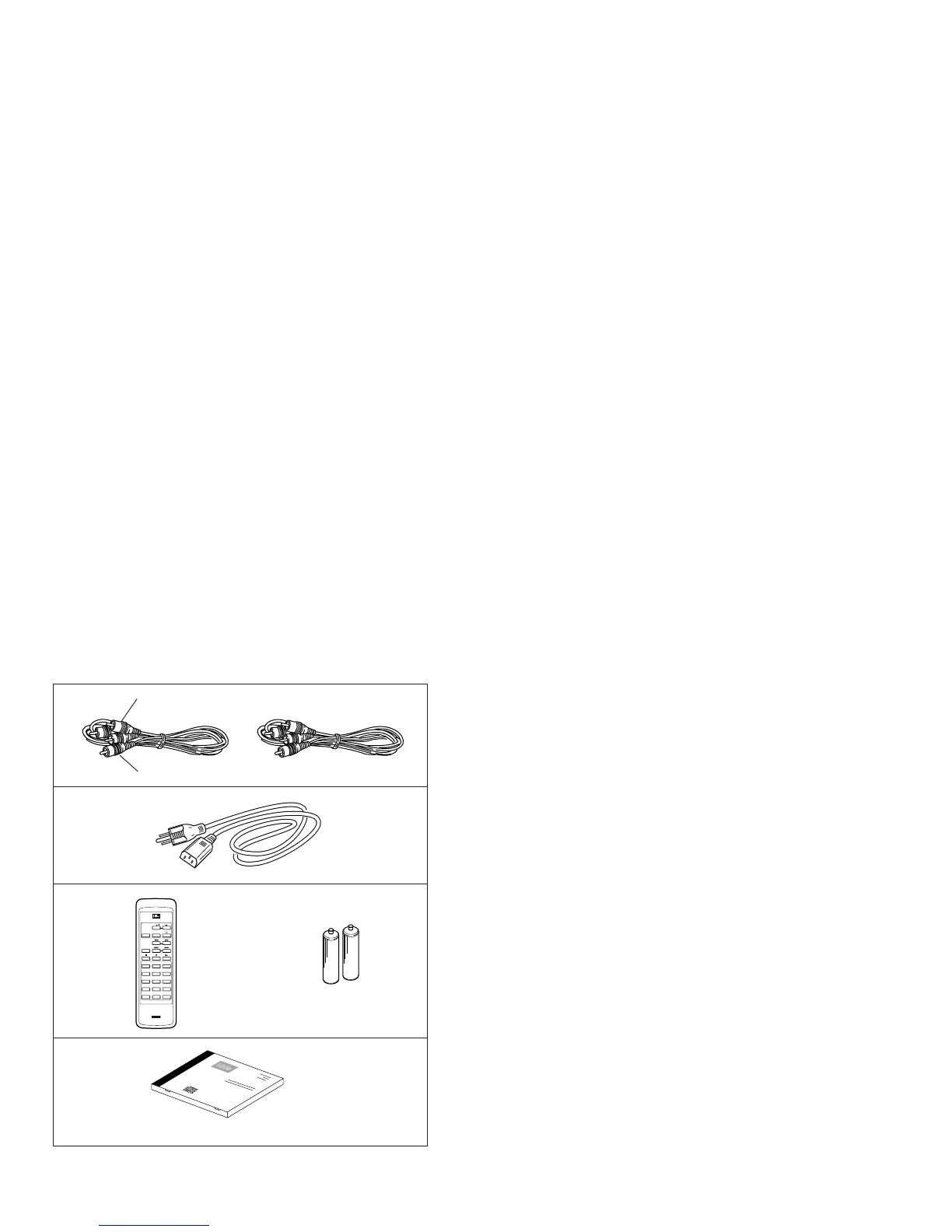

1Audio cables ... x 2 : PDE1003 (L=1.2m)
(analog recording input, analog playback output)
2AC power cord : DDG1072 (MY TYPE)
: DDG1028 (KU/CA TYPE)
3Remote control unit : PWW1122 (R-800)
4AAA/R03 dry cell batteries ... x 2
5HHB CD-R disc : PEX1007
