HHB CDR-850 - Front Panel Section

7
CDR-850
23
23
23
8
7
17
19
26
3
9
18
22
5
2
6
21
Accessories for the
VR ASSY.
13
14
20
23
10
4
A
A
11
15
16
12
1
•

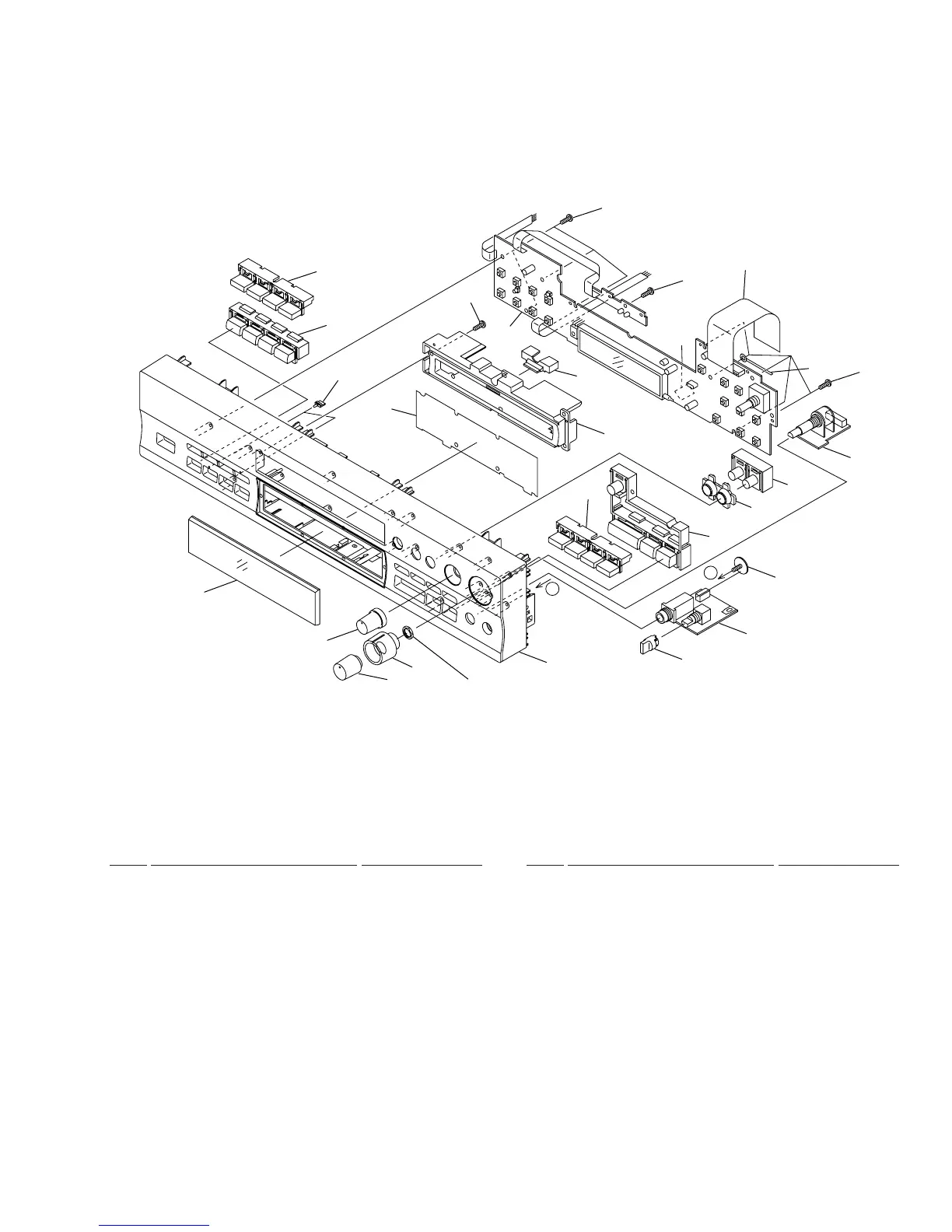

FRONT PANEL SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
2.3 FRONT PANEL SECTION
1 FUNCTION Assy PYY1266
NSP 2 HEADPHONE Assy PWZ3715
NSP 3 VR Assy PWZ3719
4 22P F•F•C/60V PDD1190
5 Screw With Washer ABA1005
6 HP Knob H PAC1944
7 Mode Button H PAC1945
8 Manual Button H(L) PAC1946
9 REC Button H PAC1948
10 Cord Clamper RNH-184
11 Manual Button H(R) PAC1947
12 VOL Knob Assy PXA1621
13 REC Knob H L PAC1942
14 REC Knob H R PAC1943
15 FL Sheet PAM1762
16 Display Window H PAM1794
17 LED Lens PNW2745
18 REC Ring PNW2795
19 Lens PNW2796
20 Sub Panel PNW2797
21 Front Panel H PNW2903
22 Play Button H PAC1950
23 Screw PPZ30P100FMC
24 • • • • •
25 • • • • •
26 IC (EEPROM) PYY1250
