Hi-flying HF2221 - STA Wireless Network Topology

HF2221 Serial Server Device User Manual
http://www.iotworkshop.com - 17 -

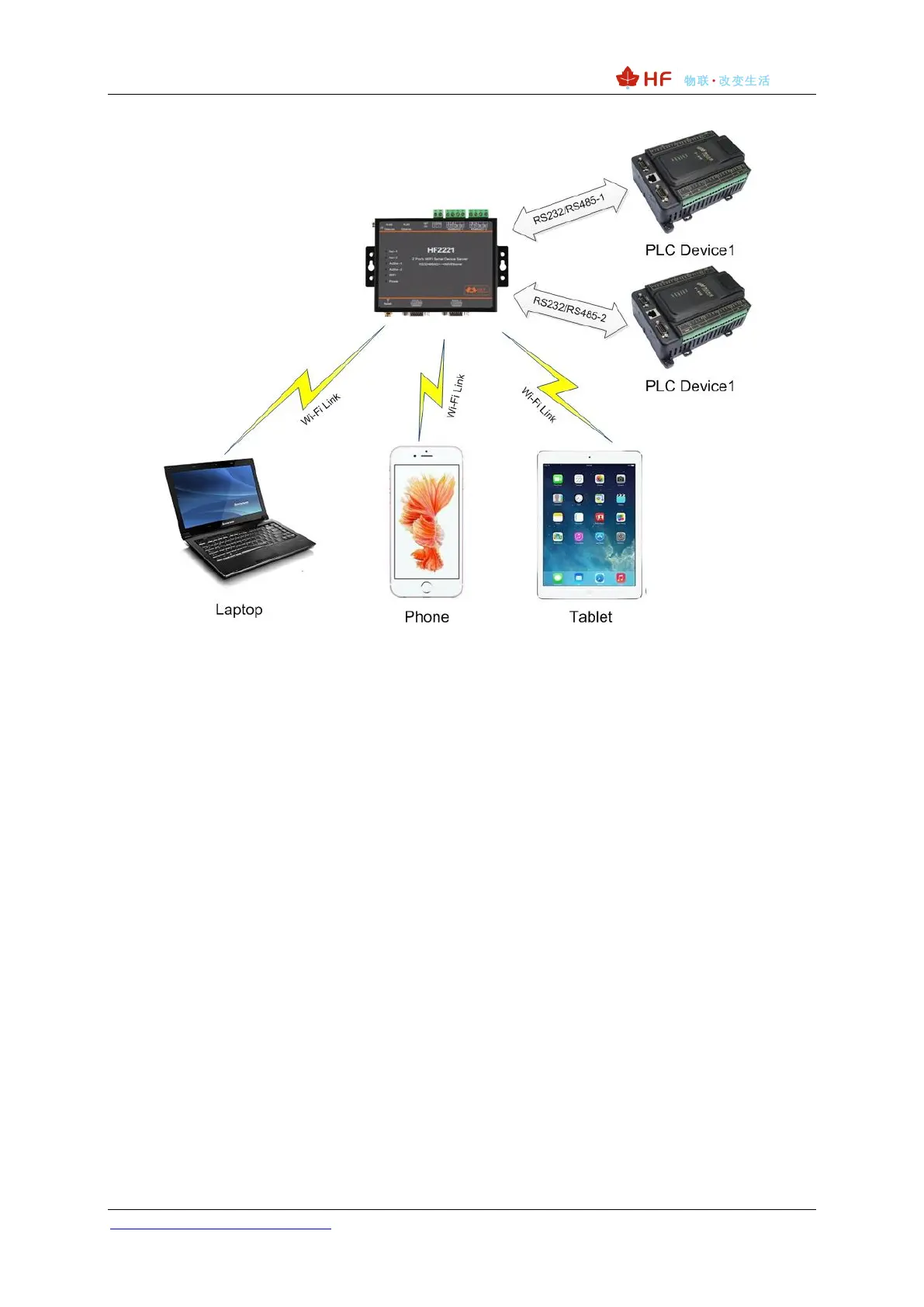

Figure 12. General AP Network
3.1.2. STA Wireless Network
Take the following picture as example. When router works in AP mode, HF2221 connects to the user’s
devices by RS232/RS485 interface. In this topology, the whole wireless network can be easily
stretched.
