3.2.1. Ethernet Port with Wi-Fi

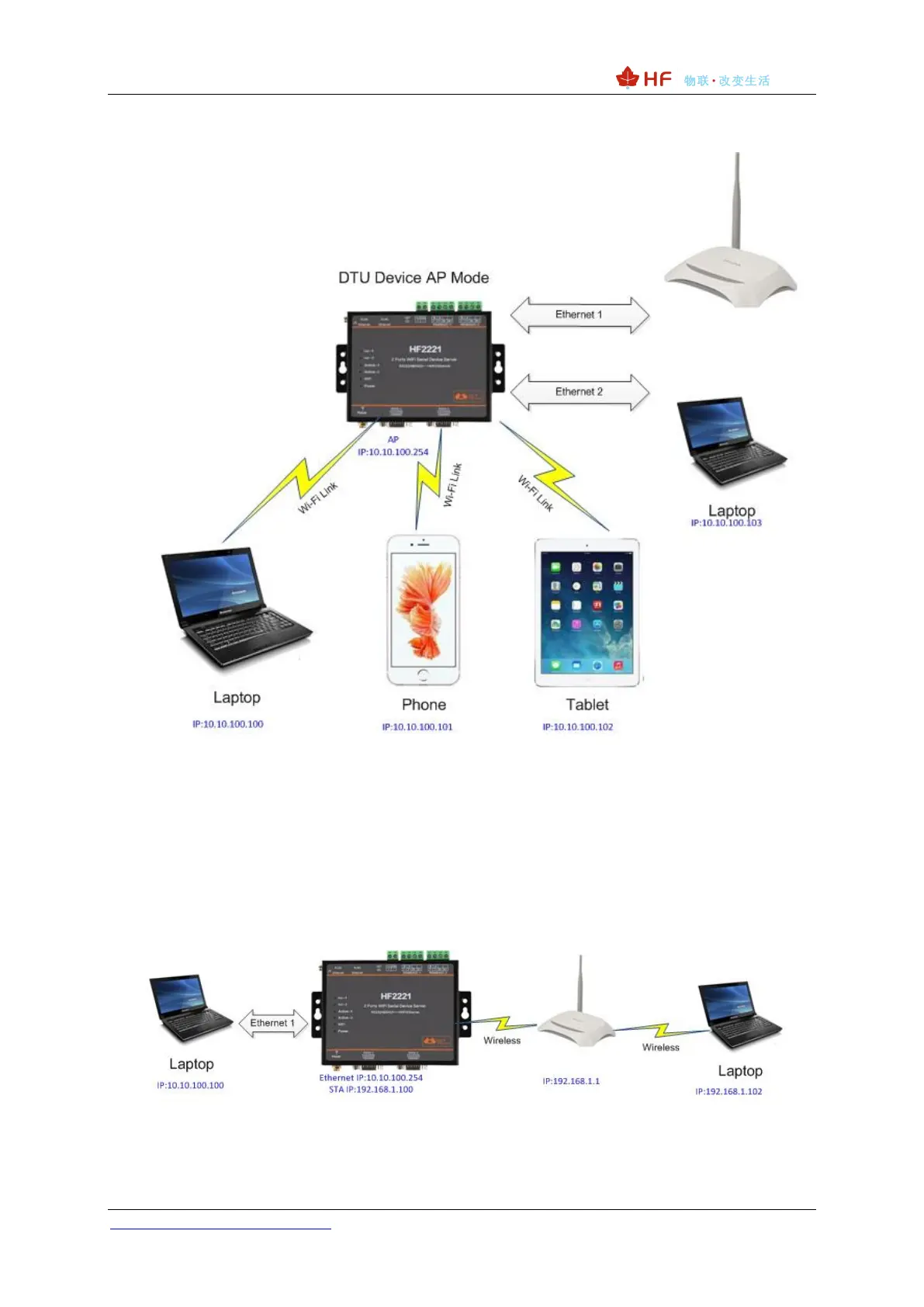

Figure 20. Ethernet Interface Function (AP)
HF2221 servers as AP and generate a central network. The IP addresses of all the devices and
modules are in the same network segment.
3.2.2. Ethernet Interface Router Function
Figure 21. Ethernet Interface Function 1 (Router)
