HF2221 Serial Server Device User Manual
http://www.iotworkshop.com - 26 -
3.2.4. Cascade Mode

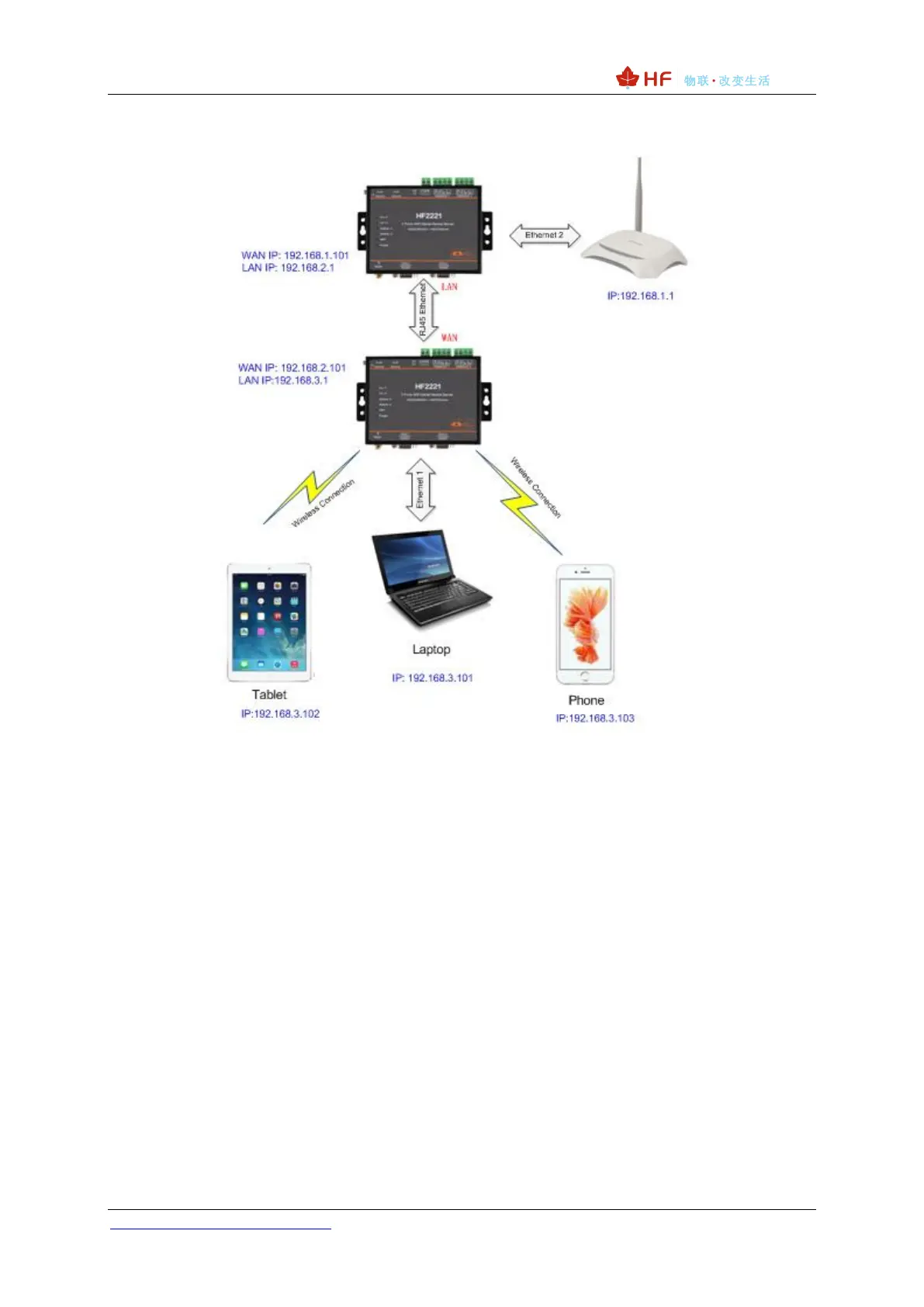

Figure 24 Cascade Mode
Devices can work as cascade to add connection nodes. Multiple HF2221 LAN and gateway address is
not constraint each other (LAN1: 192.168.2.1, LAN2: 192.168.3.1 as figure). By ethernet connection,
modules can acquire upper router IP address to become cascade mode.
