HLK-LD2410C
5.4
Mounting method and sensing range

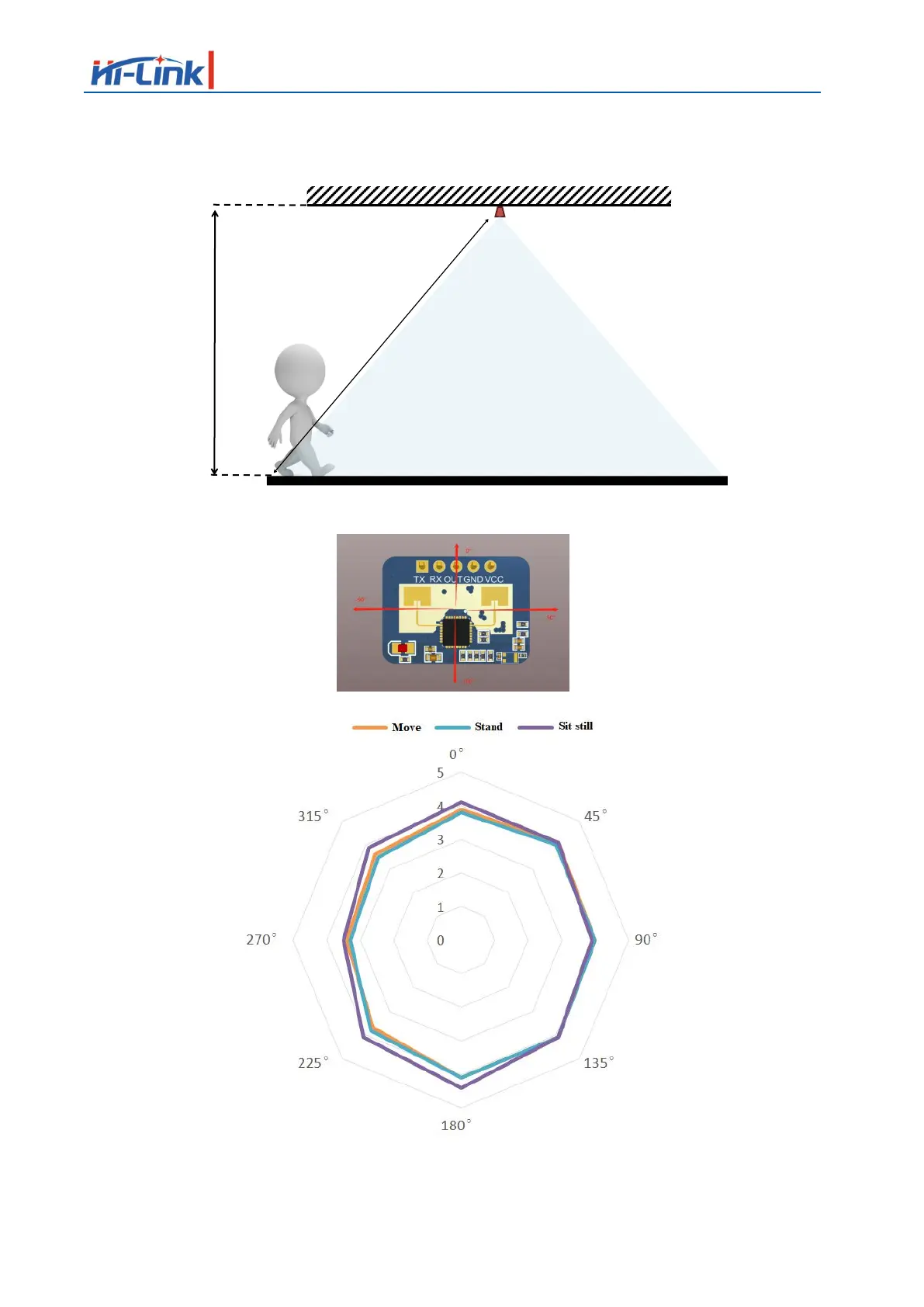

Figure 7 Schematic diagram of ceiling-mounted installation
(distance unit: meters, angle unit: degrees)
Figure 8 Schematic diagram of the detection range (the ceiling height is 3 meters)
Radar
Ceiling
High 2.6~3m
