RKL40, RPKL40, RKLB40
SRD MODEL: RKCL40E, RPKCL40E, RKCLB40E
iCLASS SE® Biometric/
iCLASS SE Display Reader
PLT-03331, Rev. A.2
3

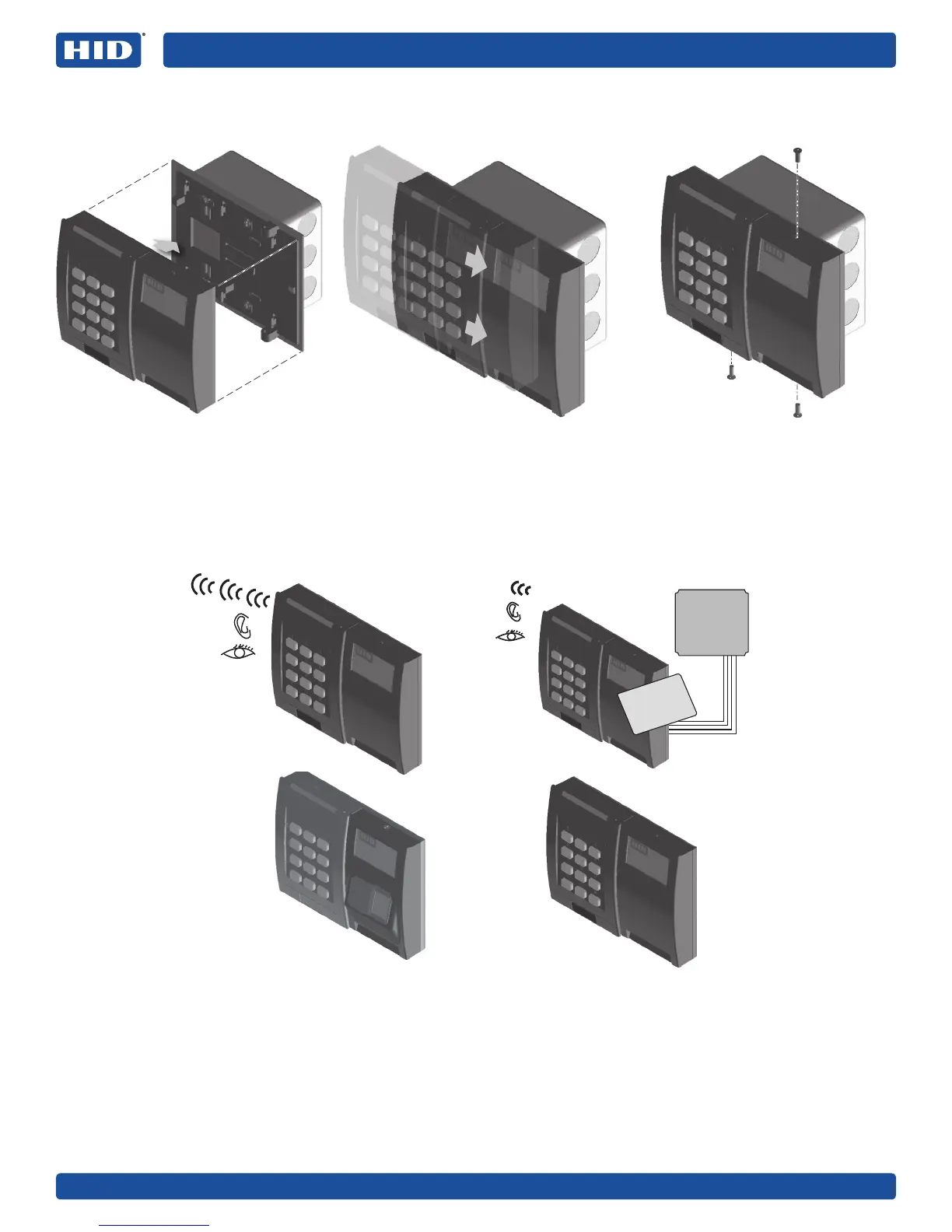

3 Attach to Backplate
Mount the Reader Assembly (Reader,
LCD Assembly, and reader backplate)
to the wall backplate.
Standard Configuration: Slide Reader
Assembly towards the right to lock.
Alternate Configuration: Slide Reader
Assembly to the left to lock.
Install Security screws.
4 Power and Testing
Notes
With a keypad reader, operating as 26 bit emulation; upon power up you have five seconds to enter the Facility Code
followed by #. If unsuccessful, the reader LED displays solid Red. Power-cycle the reader and retry entering the
Facility Code.
The Facility Code needs to be manually entered as three digits (i.e. a Facility Code of 10 is entered as 0-1-0-#). SE
readers only use Facility Codes between 1-255, and there is no default Facility Code. Once the Facility Code has
been entered, the LED will display Violet and then to Red. Power-cycle the reader to complete the Facility Code
configuration.
When using a keypad, if two short beeps are heard after entering your PIN, the reader does not have a Facility Code
configured yet. In this event, an Admin will need to power-cycle the reader and enter the Facility Code before the
reader will accept a PIN.
