Configure the Transmission parameters
The parameters can be configured with a PC tool, AVSenderUARTGUI.EXE.
Connect the USB UART dongle to a PC and the UART pin headers to HV-320.

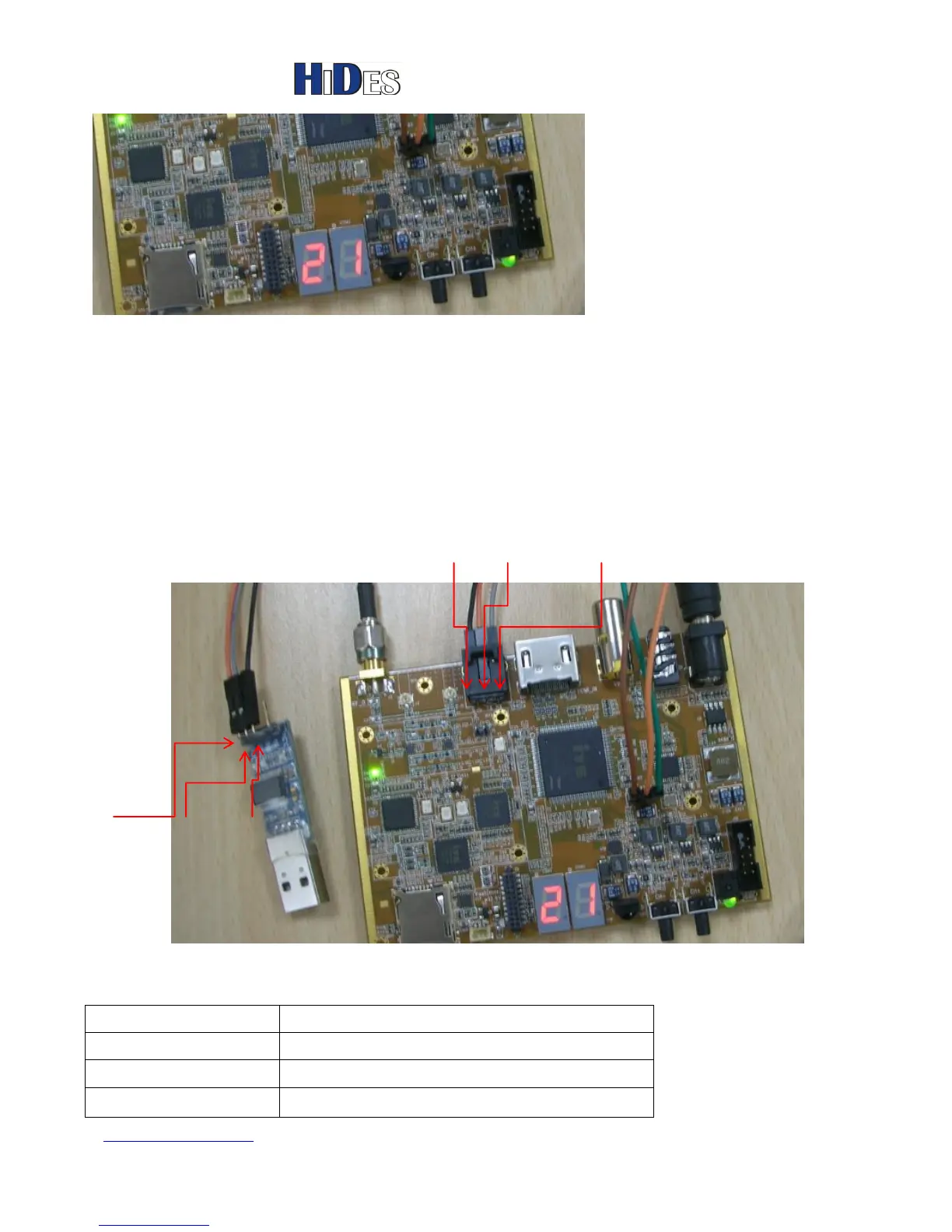

The wire connection between HV-320 and UART dongle is shown below.
Note the cross wiring between Tx & Rx.
USB UART Dongle Pin
HV-320 UART Configuration Port Pin
GND
GND
Tx
Rx
Rx
Tx
To PC USB
HV-320 UART Configuration Port
GND Tx Rx
Rx Tx Gnd
USB UART Dongle
