Note:
1. The minimum modulation data rate must be >=2.07Mbps.
When BW=2 MHz, if the data rate is <2.07, then the parameters will be adjusted to CR 3/4,
GI 1/8.
When BW=3 MHz, if the data rate is <2.07, then the parameters will be adjusted to CR 1/2,
GI 1/8.
2. it’s recommended that the “Modulation Data Rate (Mbps)” should be larger than the “Max
Bit Rate(Mbps)” for video compression in the MediaConfig page by 20~30% at least.
For example, if Max Bit Rate(Mbps)=2 Mbps, Modulation Data Rate (Mbps) should be better
>=2.4Mbps.

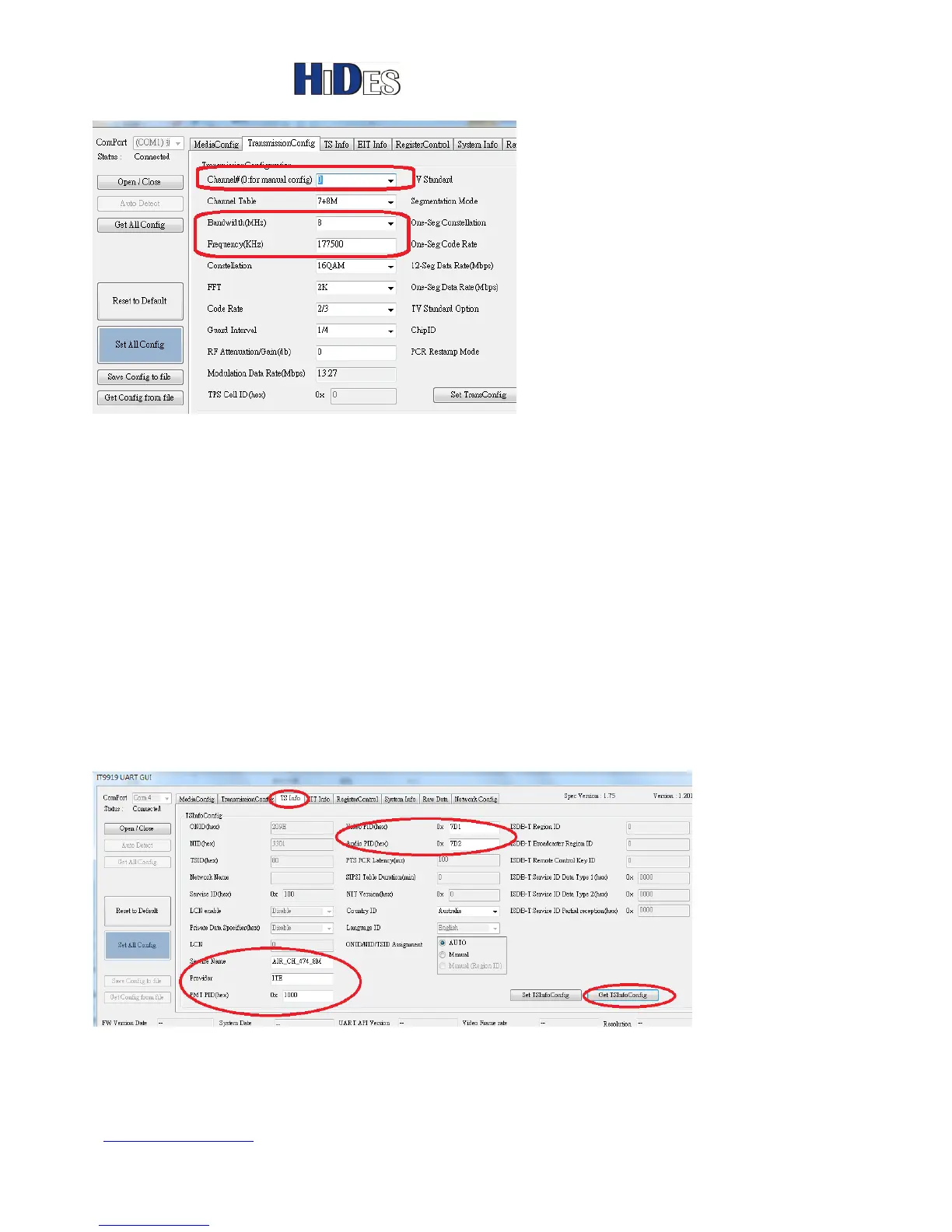

In the “TSInfo” page, please click on “GetTsInfoConfig” button first.
You can configure the service name and PID assignments.
When configuration is done, click on “SetTsInfoConfig” button to set HV-320.
