31

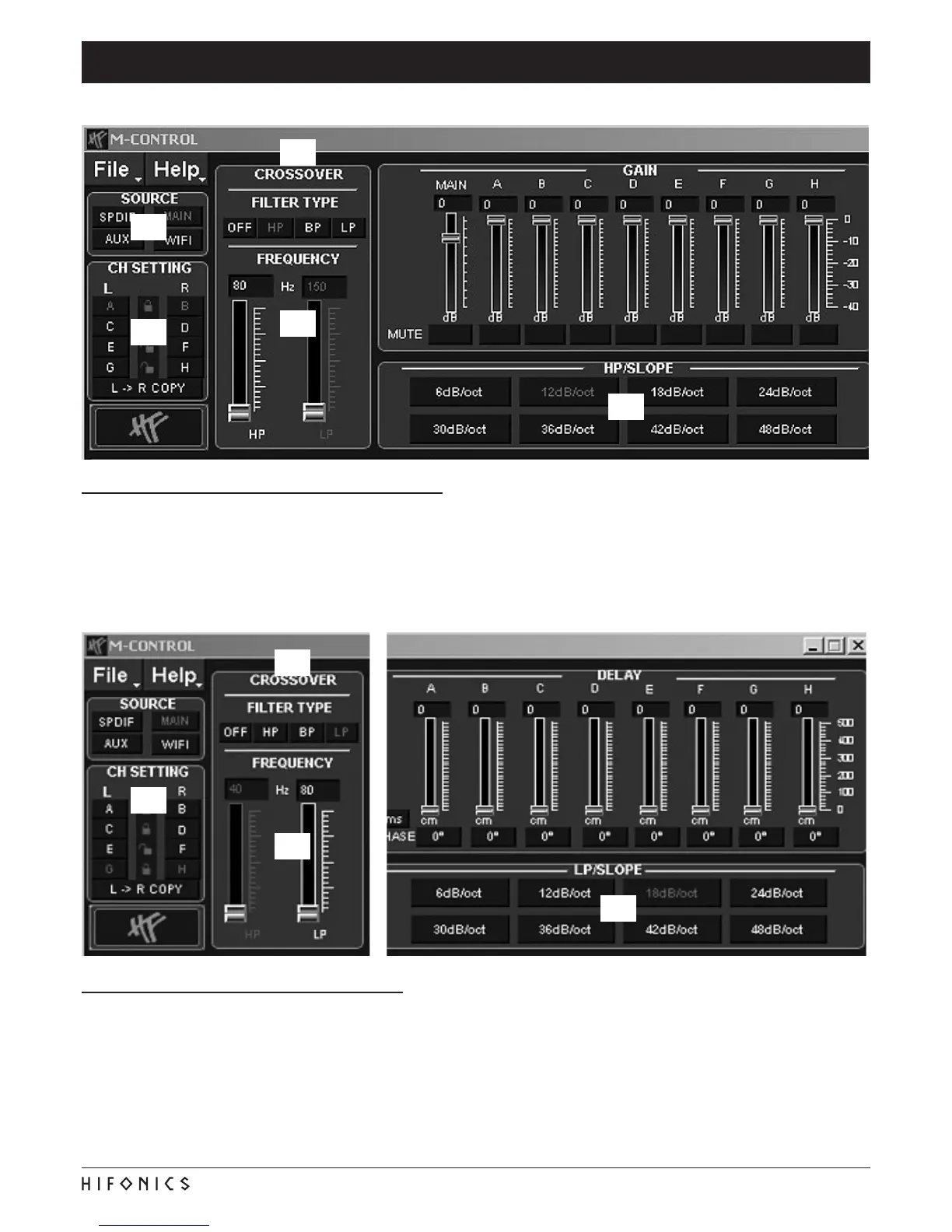

FUNCTIONAL INSTRUCTIONS
CONFIGURATION OF THE FRONT AND REAR CHANNELS
1. Chose under SOURCE the setting MAIN.
2. Chose the channel pair A & B (FL/FR) under CH SETTING by clicking on the lock symbol.
3. Chose under CROSSOVER > FILTER TYPE the setting HP (highpass lter)
4. Set under CROSSOVER > FREQUENCY a cut-off frequency between 60Hz and 150 Hz.
5. Chose under HP/SLOPE a slope value of 12dB/oct.
Repeat the steps 2 – 5 for channel pair C & D (RL/RR)
CONFIGURATION OF THE SUBWOOFER CHANNEL
6. Chose the channel pair G & H (SUB IN) under CH SETTING by clicking on the lock symbol.
7. Chose under CROSSOVER > FILTER TYPE the setting BP (bandpass lter)
8. Set under CROSSOVER > FREQUENCY a cut-off frequency for the HP between 10Hz and 30 Hz and for the LP between
50Hz and 100 Hz.
9. Chose under LP/SLOPE and HP/SLOPE a slope value of 18dB/oct.
Note: The given frequency values are only guidelines and may vary depending on size and quality of the speakers and vehicle‘s acou-
stics.
5
6
7
8
9
3
4
2
1
