Highland T560 - Figure 7-2 Typical T560 Rising Edge, Externally Triggered, Delay = 100 Ns

40 T560MANK5.DOCX

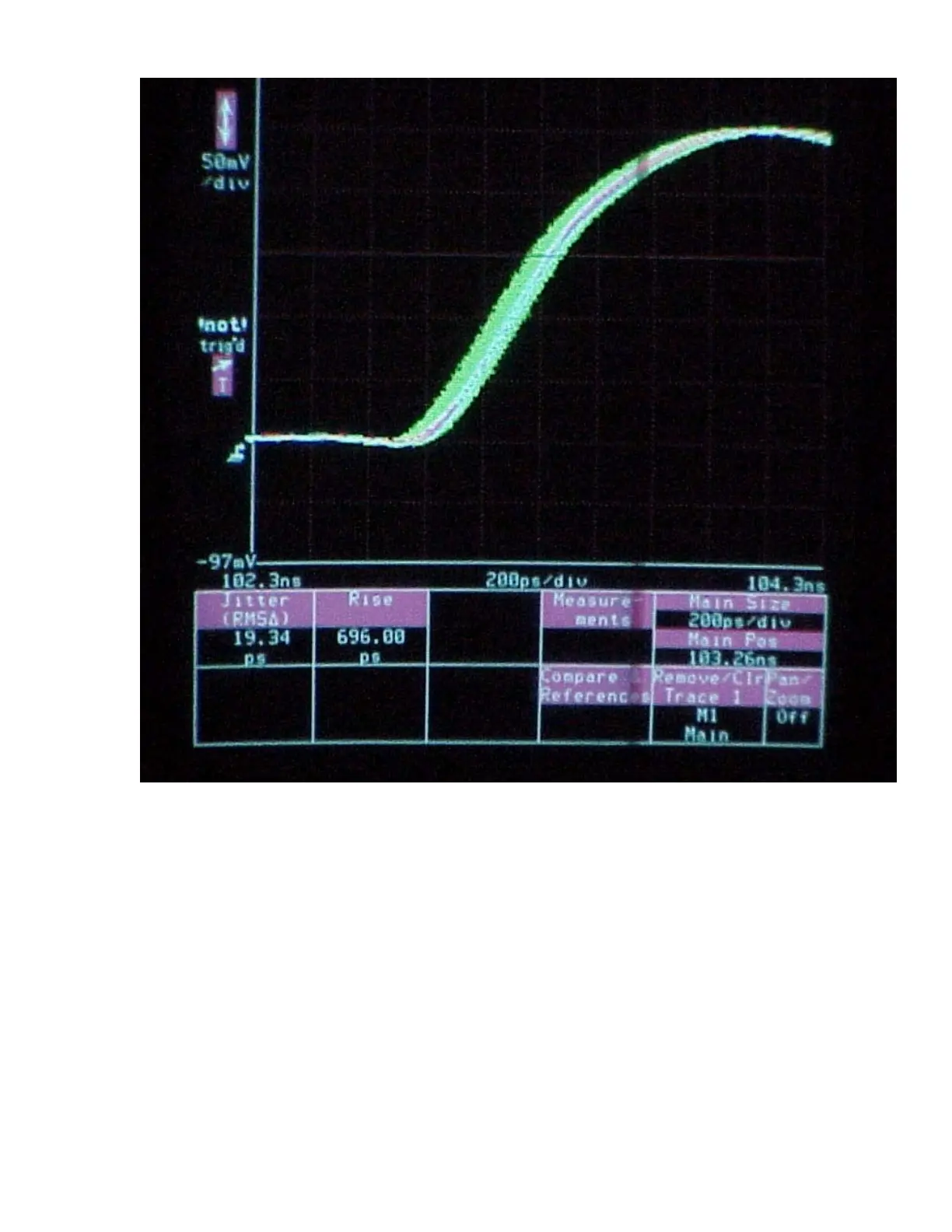

Figure 7-2 Typical T560 Rising Edge, Externally triggered, delay = 100 ns
This was measured on a Tektronix 11801A sampling oscilloscope, with the scope and the
T560 triggered by a Highland P400 digital delay generator. Indicated jitter is 19.3 ps RMS,
risetime 696 ps.
