HighPoint Rocket 1104 User Manual

5
R1104/R1204 Hardware Installation:
Using the R1204 as an example:

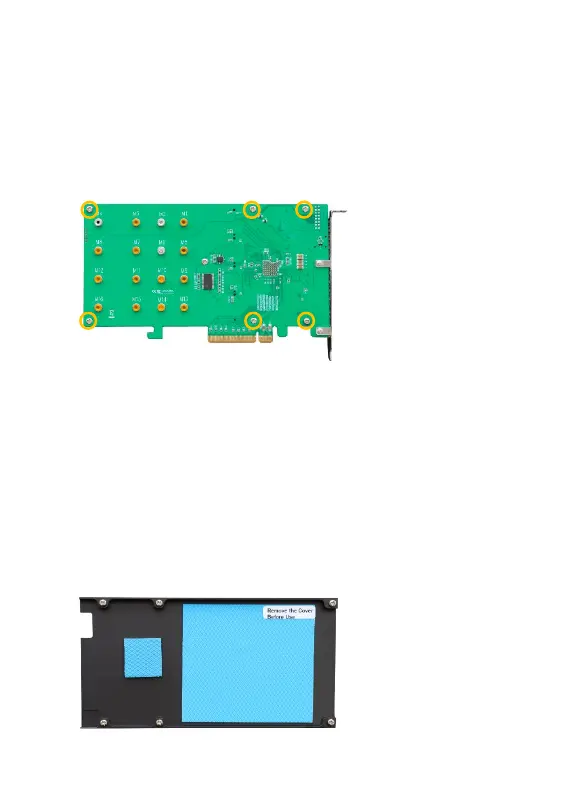

Step 1. On the rear of the R1204, remove the six screws that
secure the unit’s heat sink to the PCB.
After removing the screws, carefully remove the heat sink
from the R1204.
Step 2. After removing the casing, carefully turn it over to
view the thermal pad. The blue film must be removed
from the pad before reinstalling the panel. This film
protects the pad from damage and foreign objects prior to
installation. However, it can also prevent the thermal pad
form conducting heat away from the NVMe SSDs not
removed.
