6

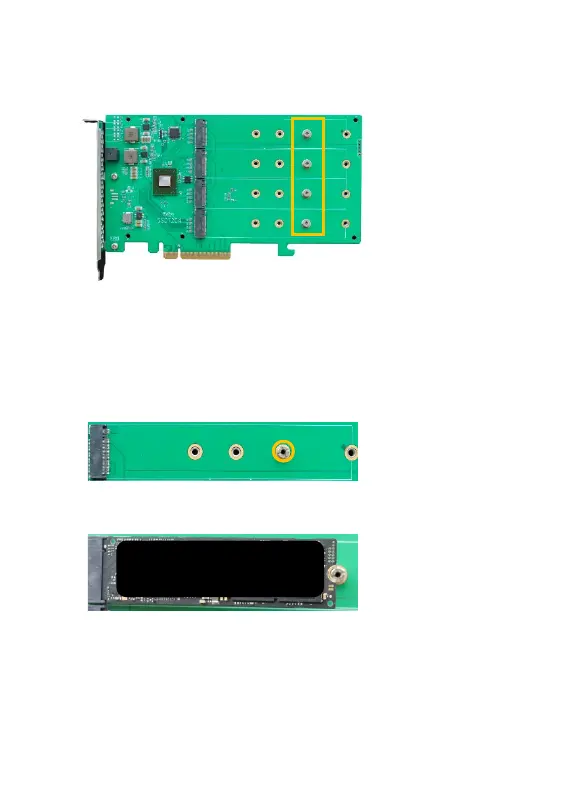

Step 3. These 4 screws are used to install the NVMe SSD’s.
The R1104 and R1204 can support any M.2 form factor
(2242, 2260, 2280, and 22110).
Step 4. Please remove the screws on the right side of the
R1204:
Step 5. Gently insert the SSD into the slot.
Note: If the NVMe SSDs were used previously, make sure
the connectors are clean and free of dust prior to
installation.
