8

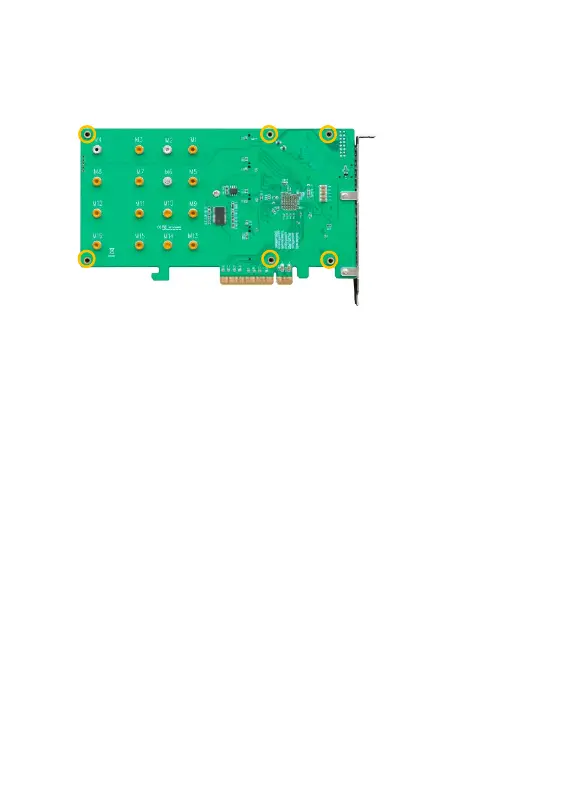

Step 8. On the rear of the R1204, refasten the six screws that
were removed in step 1.
Note
：
Make sure the aluminum heatsink is properly aligned
with the controller board (PCB), and that it makes full contact
with the thermal pad, before refastening it to the R1204/R1104.
If the heatsink is improperly installed, it will be unable to
sufficiently cool the NVMe SSDs and controller componentry,
which may result in damage to the SSDs or controller
hardware, performance loss, unstable I/O, and the loss of data.
