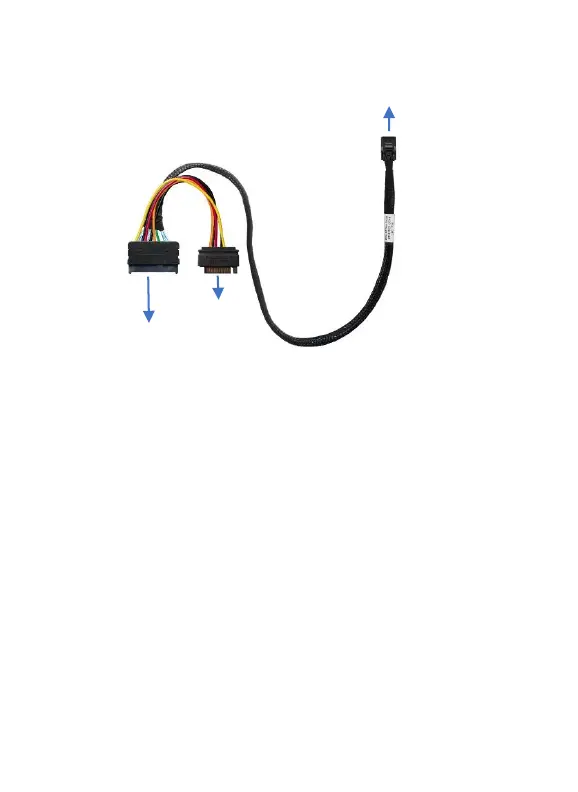

Step 4: Shown above is an SFF-8643 to U.2 SFF-8639 cable with a 15-

pin SATA power connector. Connect the R1120 to the NVMe

SSD’s using the appropriate SFF-8643 cables. The SFF-8639

port should be connected to the NVMe SSD’s U.2 port. The 15

pin SATA power connector should be connected the system’s

power supply.

SFF-8643

SFF-8639

SATA-15pin
