Step 2: Connecting the SSDs using TS8i-8639-060 cables. The
SFF-8639 port should be connected to the NVMe SSD’s U.2
port. The 15 pin SATA power connector should be connected to
the system’s power supply.

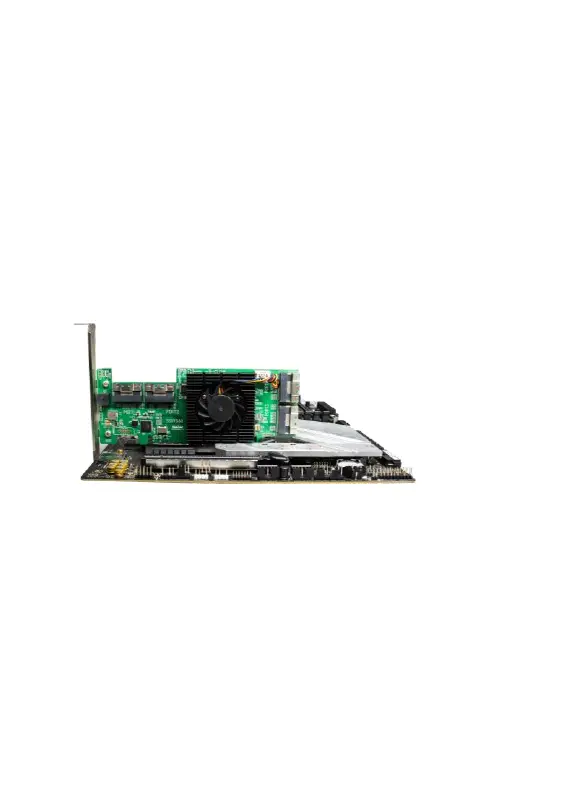

Step 3: Insert the R1580 controller into one of the motherboard’s open
PCI-E 4.0 x16 slots.
