6

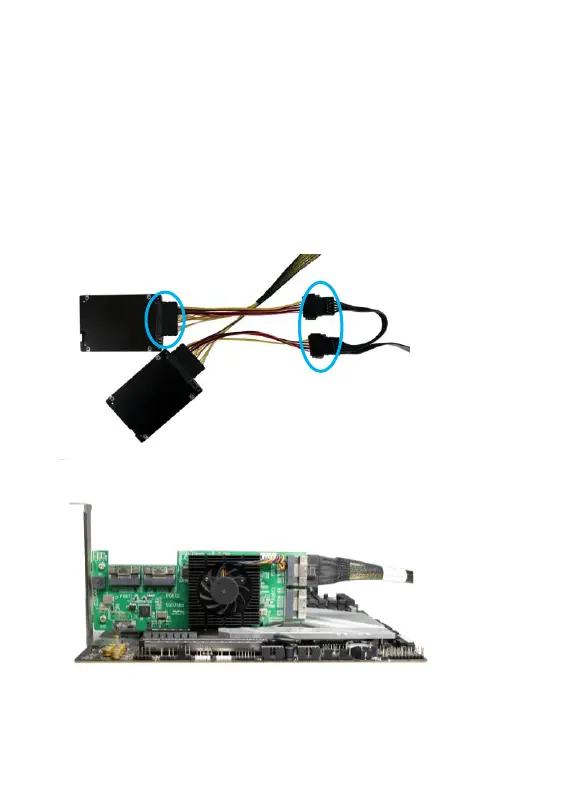

Step 4: As described in step 2, connect the SFF-8639 cable connectors
to the U.2/U.3 SSDs. Next, connect the SFF-8654 cable
connector to one of the R1580’s four device ports (Ports 1
through 4)
SFF-8639
15-pin SATA power connector
