4
Hardware Installation:

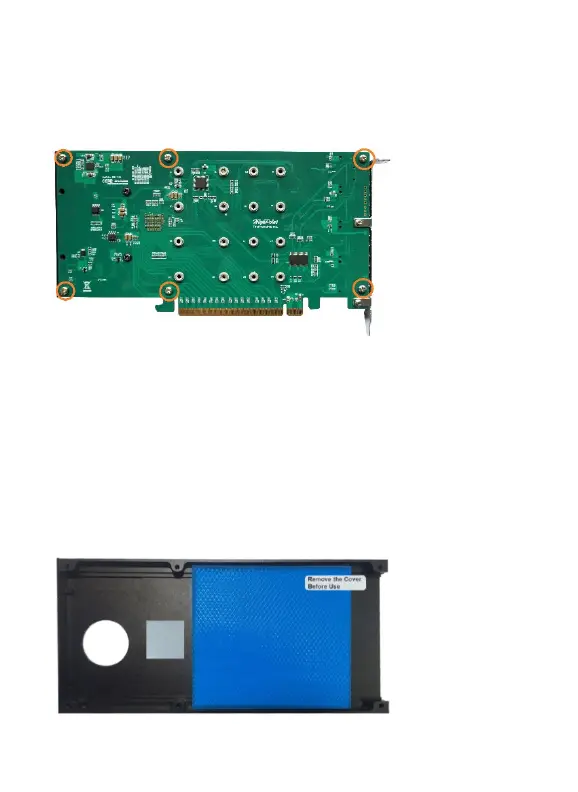

Step 1. On the rear of the SSD7101A-1, remove the six screws that
secure the unit’s front panel to the PCB.
After removing the screws, carefully remove the front panel from the
SSD7101A-1.
Step 2. After removing the casing, carefully turn it over to view the
thermal pad. The blue film must be removed from the pad before
reinstalling the panel. This film protects the pad from damage and
foreign objects prior to installation, however, it can also prevent the
thermal pad form conducting the heat away from the NVMe SSD's if
we don't remove it.
