NVMe Drive Installation

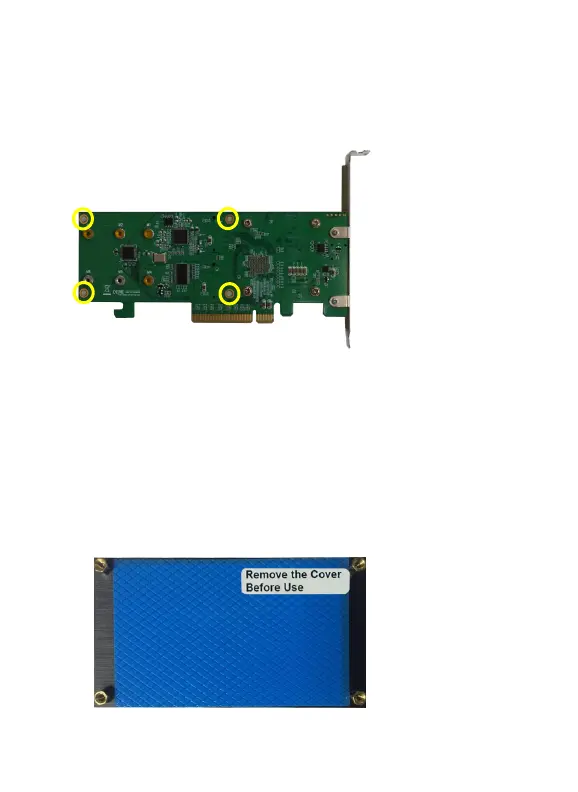

Step 1. On the rear of the SSD7202, remove the four screws that secure
the unit’s heat sink to the PCB.
After removing the screws, carefully remove the heat sink from the
SSD7202.
Step 2. After removing the casing, carefully turn it over to view the
thermal pad. The blue film must be removed from the pad before
reinstalling the panel. This film protects the pad from damage and
foreign objects prior to installation, however, it can also prevent the
thermal pad form conducting the heat away from the NVMe SSD's if
we don't remove it.
