User Manual of Network Camera
74
Day/Night Auto-Switch
Steps:
(1) Draw the detection area as in the normal configuration mode. Up to 8 areas are
supported.
(2) Select Auto-Switch for Switch Day and Night Settings.

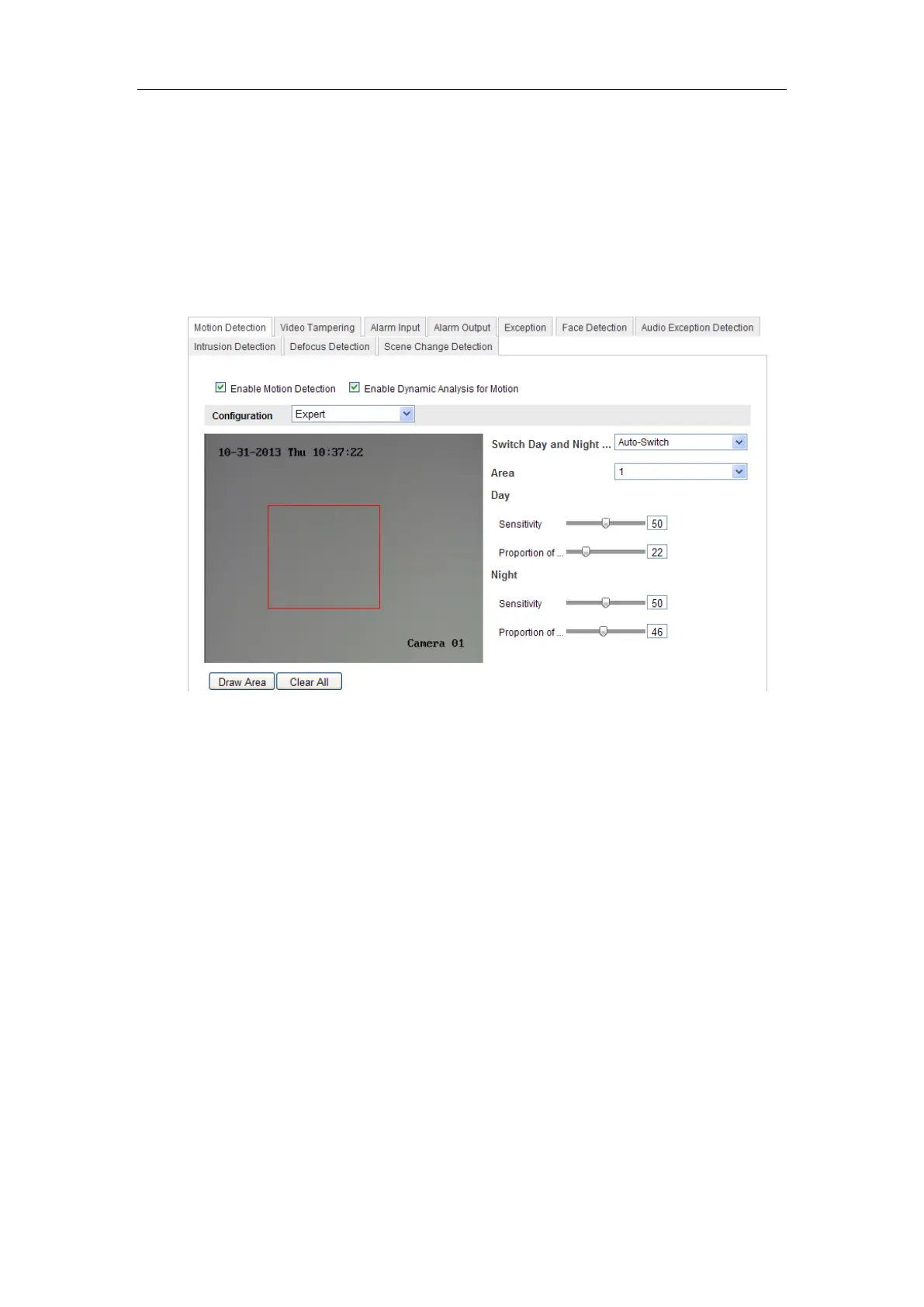

Figure 6-44 Day/Night Auto-Switch
(3) Select the area by clicking the area No.
(4) Slide the cursor to adjust the sensitivity and proportion of object on the area for the
selected area in the daytime.
(5) Slide the cursor to adjust the sensitivity and proportion of object on the area for the
selected area at night.
(6) Set the arming schedule and linkage method as in the normal configuration mode.
(7) Click Save to save the settings.
Day/Night Scheduled-Switch
(1) Draw the detection area as in the normal configuration mode. Up to 8 areas are
supported.
(2) Select Scheduled-Switch for Switch Day and Night Settings.
