HIKVISION Digital Video Recorder Quick Start Guide

Quick Start Guide of Digital Video Recorder
30
Menu Operation
Menu Structure

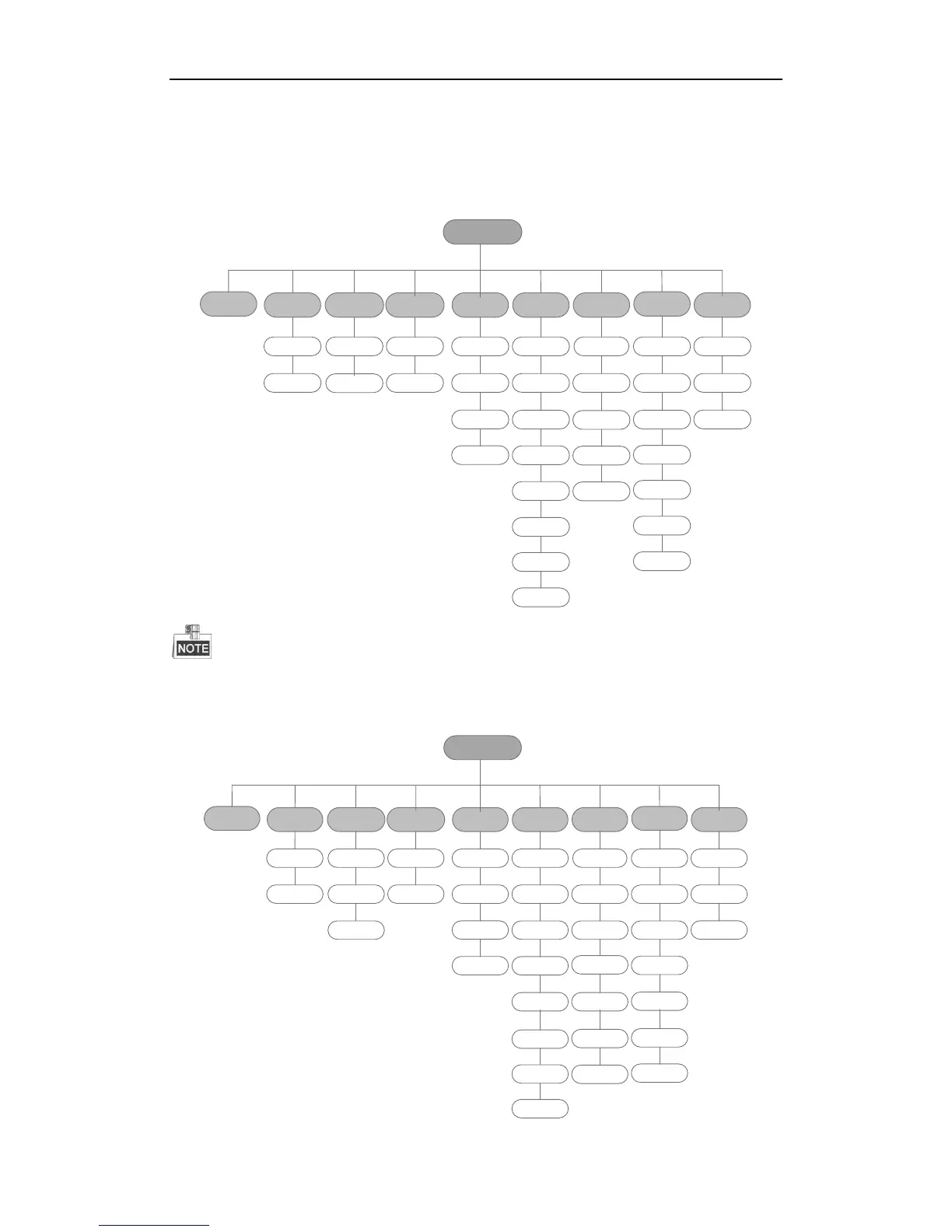

The menu structure of the DS-7100HGHI-SH and DS-7200HGHI-SH DVR is shown below:
Menu
Export Manual HDD Camera
Maintenance
ShutdownRecord
Configuration
Playback
Normal Record General Schedule General
System Info
Logout
Event Advanced Encoding
OSD
Network
Log
Information
Shutdown
Manual VQD
Advanced
Import/Export
Reboot
Holiday
PTZ
Upgrade
Motion
Live View
Default
Privacy
Mask
Exceptions
Net Detect
Video
Tampering
User
Video Loss
HDD Detect
VQD
For the DS-7100HGHI-SH does not have the RS-485 serial interface, the PTZ function is not supported.
The menu structure of the DS-7200HQHI-SH, DS-7300HGHI&HQHI-SH and DS-8100HGHI&HQHI-SH DVR is
shown below:
Menu
Export Manual HDD Camera
Maintenance
ShutdownRecord
Configuration
Playback
Normal Record General Schedule General
System Info
Logout
Event Advanced Encoding
OSD
Network
Log
Information
ShutdownAlarm
Advanced
Import/Export
Reboot
Holiday
PTZ
Upgrade
Motion
Live View
Default
Privacy
Mask
Exceptions
Net Detect
Video
Tampering
User
Video Loss
HDD Detect
VQD
Manual VQD
Alarm
RS-232

HIKVISION Digital Video Recorder Specifications

General

Audio system	2-way
Product color	Black
Channels quantity	4 channels
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format system	NTSC, PAL
Playback resolutions supported	1920x1080, 1280x1024, 1280x720, 1024x768, 704x480, 704x576
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Audio input	RCA
RS-485 ports	1
USB 2.0 ports quantity	2
DC voltage	12 V
Power consumption (typical)	18 W
HDD interface	Serial ATA, Serial ATA II, Serial ATA III
Maximum HDD capacity	10000 GB
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Weight and Dimensions

Depth	242 mm
Width	315 mm
Height	45 mm
Weight	1160 g
