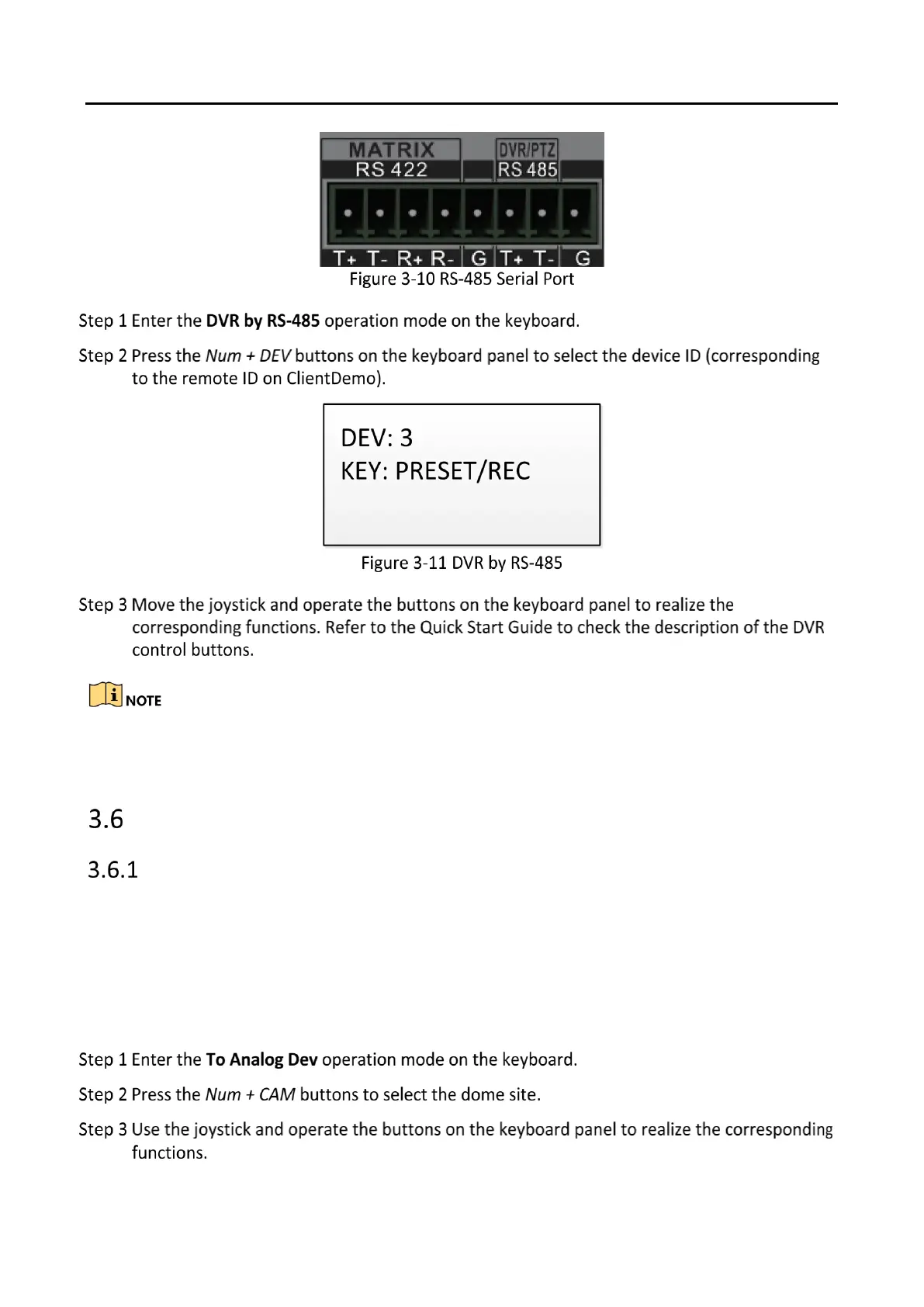

The baud rate, protocol and other parameters of RS-485 of the keyboard must be configured to
9600, 8, 1, and none parity.
To Analog Device
Dome by RS-485
The keyboard can connect with the analog dome or PTZ unit via RS-485 serial port, and realize PTZ
control.
Before you start:
Check the connection between the dome and the Keyboard. Connect the T+ ad T- terminals of the
keyboard's RS-485 serial port with the RS485+ and RS485- terminals of the dome respectively.

HIKVISION DS-1200KI Specifications

General

Joystick	Yes
Interface	Wired
Display type	LCD
Product type	Control panel
Product color	Black
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Suitable for smartphone	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input type	Touch screen/Press buttons
Form factor	-
Keyboard style	Curved
Brand compatibility	Hikvision Digital Technology
Remote control proper use	DVR
Purpose	Universal
Device interface	RS-232 + RS-422 + RS-485
Recommended usage	Office
Operating voltage	12 V
Power source type	DC
Harmonized System (HS) code	85299097

Weight and Dimensions

Depth	193 mm
Width	435 mm
Height	110 mm
Weight	1000 g
Keyboard dimensions (WxDxH)	435 x 193 x 110 mm
