DS-1200KI/1006KI Keyboard User Manual
35

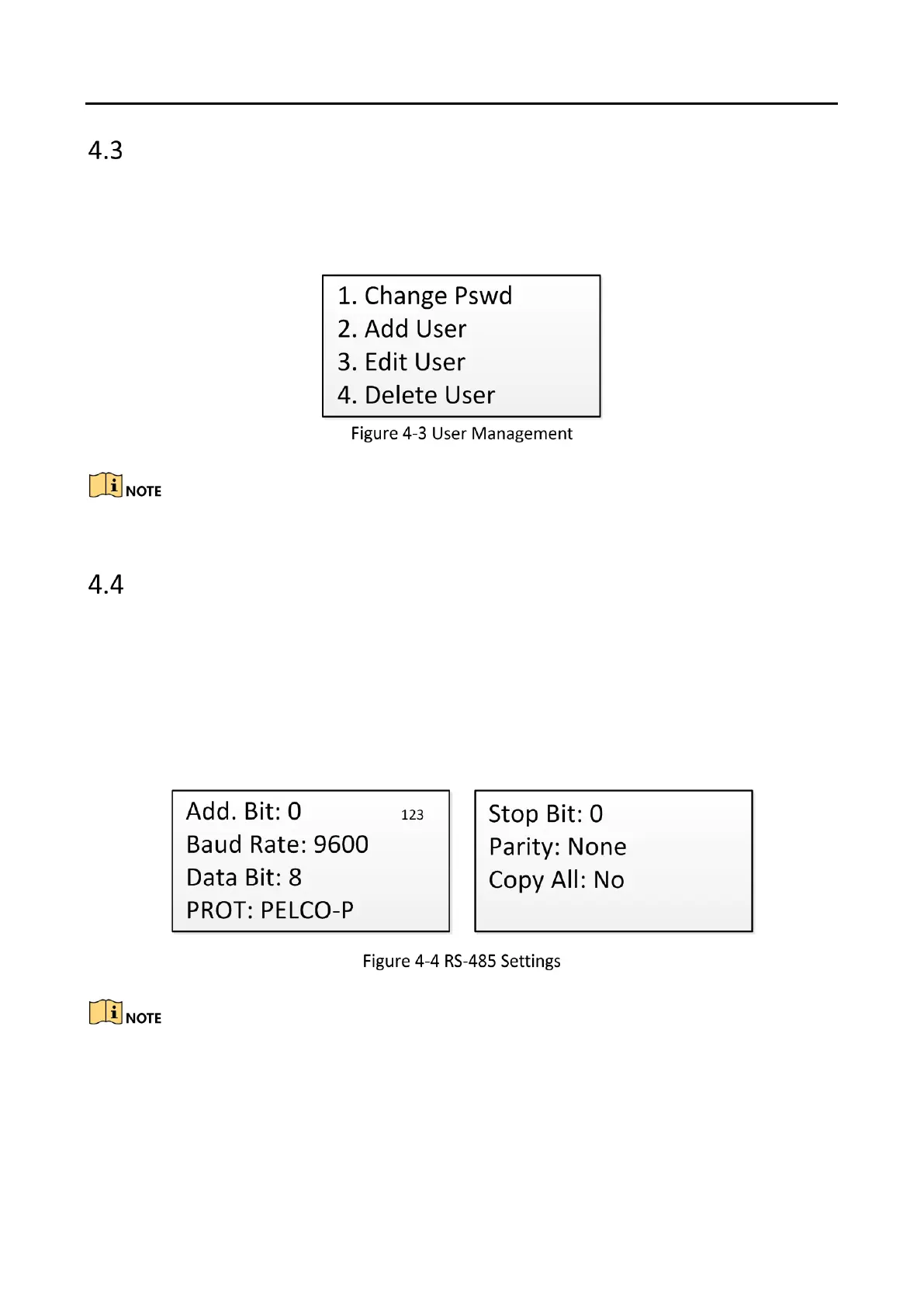

User Management
Select User to enter the user management interface. You can change the password (admin), add
new user, edit user or delete the user.
Click OK button or the central button of joystick to save the settings.
Only the admin user is allowed to add/edit/user the user (operator).
Serial Port Settings
You can connect analog dome or DVR with the keyboard via RS-484 serial port, MVC/MAG via RS-
422 serial port and analog matrix via RS-232 serial port.
Select Serial Port to enter the settings. You can configure the address bit (RS-485 only), baud rate,
data bit, protocol, stop bit, parity, and copy all settings. When you set the Copy All to Yes for RS-
485 serial port, the current settings will be copied to the connection of all other RS-485 devices.
Click the OK button or the central button of joystick to save the settings.
The RS-485/RS-422/RS-232 parameters configured here must be the same with the connected
dome/DVR or MAG.

HIKVISION DS-1200KI Specifications

General

Joystick	Yes
Interface	Wired
Display type	LCD
Product type	Control panel
Product color	Black
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Suitable for smartphone	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input type	Touch screen/Press buttons
Form factor	-
Keyboard style	Curved
Brand compatibility	Hikvision Digital Technology
Remote control proper use	DVR
Purpose	Universal
Device interface	RS-232 + RS-422 + RS-485
Recommended usage	Office
Operating voltage	12 V
Power source type	DC
Harmonized System (HS) code	85299097

Weight and Dimensions

Depth	193 mm
Width	435 mm
Height	110 mm
Weight	1000 g
Keyboard dimensions (WxDxH)	435 x 193 x 110 mm
