DS-1200KI/1006KI Keyboard User Manual
36

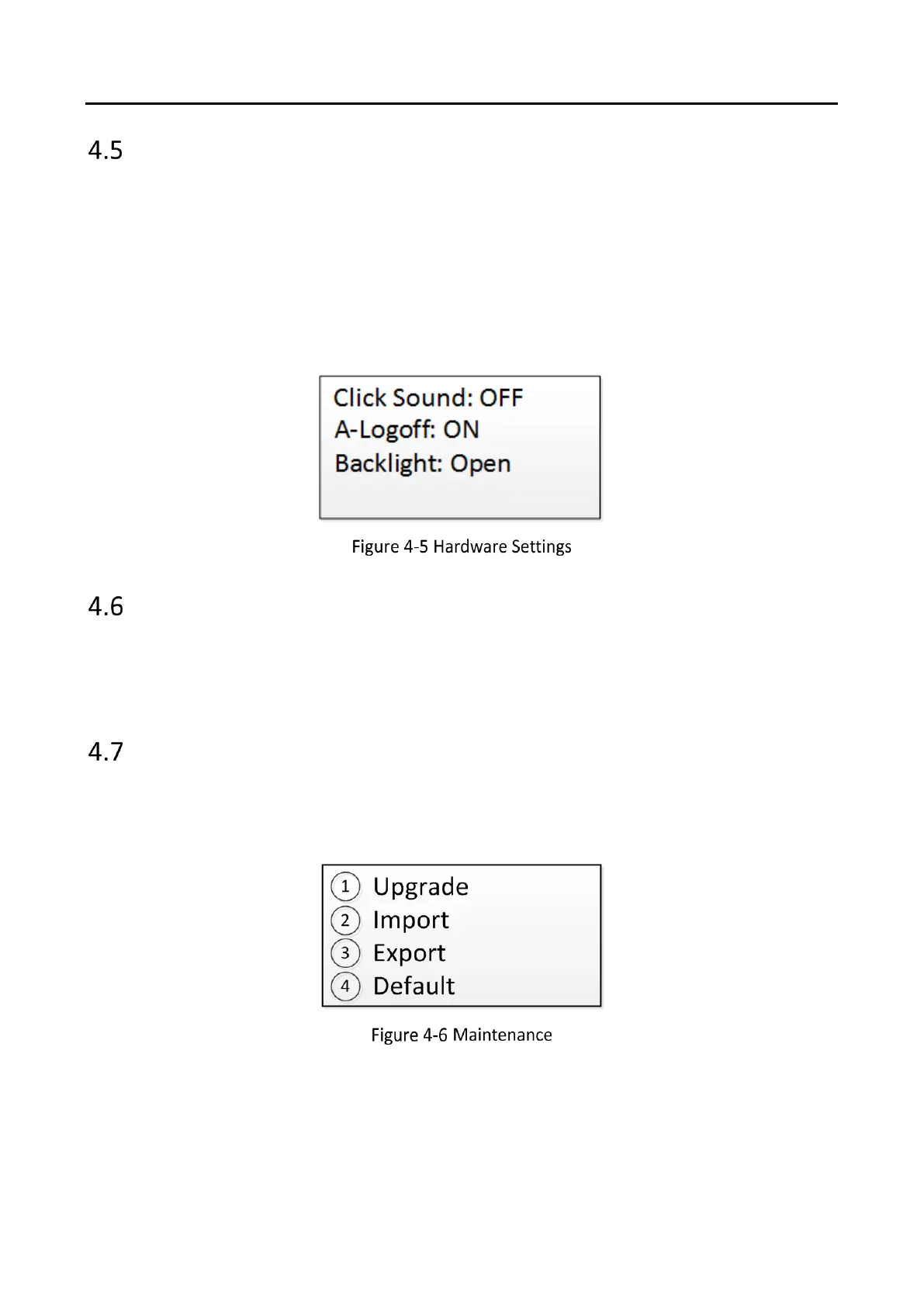

Hardware
You can set the click sound, auto-logoff, and backlight feature of the keyboard.
Select Hardware to enter the following interface, and move (left/right) the joystick to set the
function. Click OK button or the central button of joystick to save the settings.
If you enable Click Sound, there will be sound when you press the keyboard buttons. When the
auto-logoff is set to ON, the system will automatically log off after the device is not operated for 30
minutes. The duration of backlight can be set as Open (always turned on), 5min, 10min, 30min,
and 60min.
Time Settings
Select Time to enter the system time settings interface. You can set the value of year, month, date,
time format, hour, minute and second. Click OK button or the central button of joystick to save the
settings.
Maintenance
Select Maintenance to enter the system maintenance settings interface. You can upgrade the
device, import and export the configuration files, and recover the device to the factory default
settings.

HIKVISION DS-1200KI Specifications

General

Joystick	Yes
Interface	Wired
Display type	LCD
Product type	Control panel
Product color	Black
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Suitable for smartphone	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Input type	Touch screen/Press buttons
Form factor	-
Keyboard style	Curved
Brand compatibility	Hikvision Digital Technology
Remote control proper use	DVR
Purpose	Universal
Device interface	RS-232 + RS-422 + RS-485
Recommended usage	Office
Operating voltage	12 V
Power source type	DC
Harmonized System (HS) code	85299097

Weight and Dimensions

Depth	193 mm
Width	435 mm
Height	110 mm
Weight	1000 g
Keyboard dimensions (WxDxH)	435 x 193 x 110 mm
