HIKVISION DS-2CD2032-I Installation Manual

Installation Manual of Network Camera
40
 In-ceiling Mounting:
Steps:
1. Drill the screw holes and the cable hole on the ceiling according to the supplied drill template.
Drill Template
1
1
1
A
Hole A: for the recessed part of
the camera body
Screw hole 1: for Toggle bolt
Code:190600840

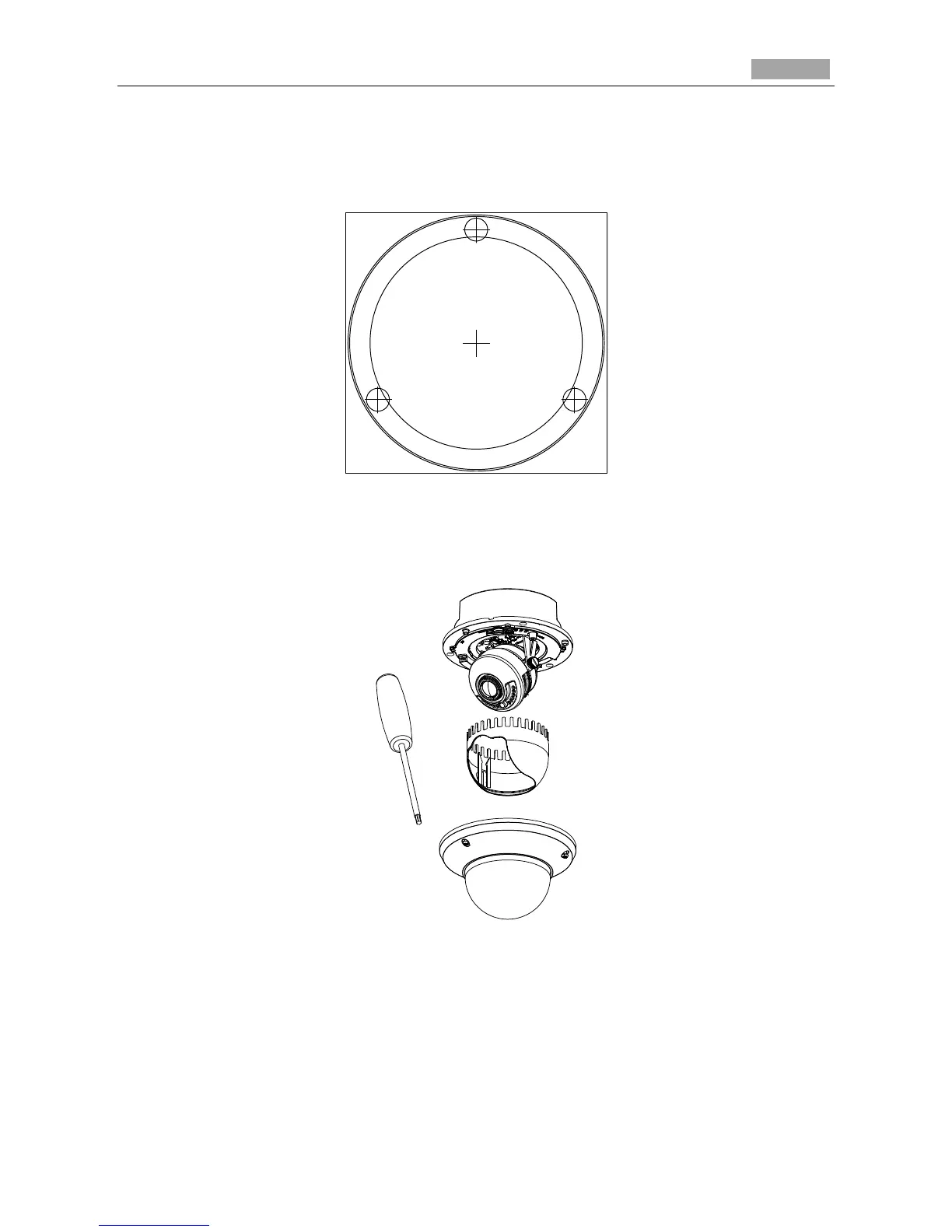

Figure 3-41 Drill Template
2. Loosen the set screws with the hex key (supplied) to remove the bubble; and remove the black
liner.
Figure 3-42 Disassembling
3. Rotate the toggle to remove it from the toggle bolt.
4. Insert the bolt into the toggle bolt hole on the dome drive and use the screw driver to rotate the
bolt slightly but not tightly.
5. Reinstall the toggle and push the dome drive to the cable hole on the ceiling with toggle bolts
aligned with the screw holes on the ceiling.
Lo-Call 1890 866 900
www.cctvireland.ie
shop@cctvireland.ie

HIKVISION DS-2CD2032-I Specifications

General

Type	IP security camera
PTZ control	No
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Camera shutter speed	0.04 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	4 - 12 mm
LED type	IR
Night vision distance	30 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 V
Power source type	PoE
Power consumption (max)	7 W
Power consumption (typical)	5 W
Operating temperature (T-T)	-30 - 60 °C

Weight and Dimensions

Depth	76.9 mm
Width	60.4 mm
Height	139.2 mm
Weight	500 g
