Installation Manual of Network Camera

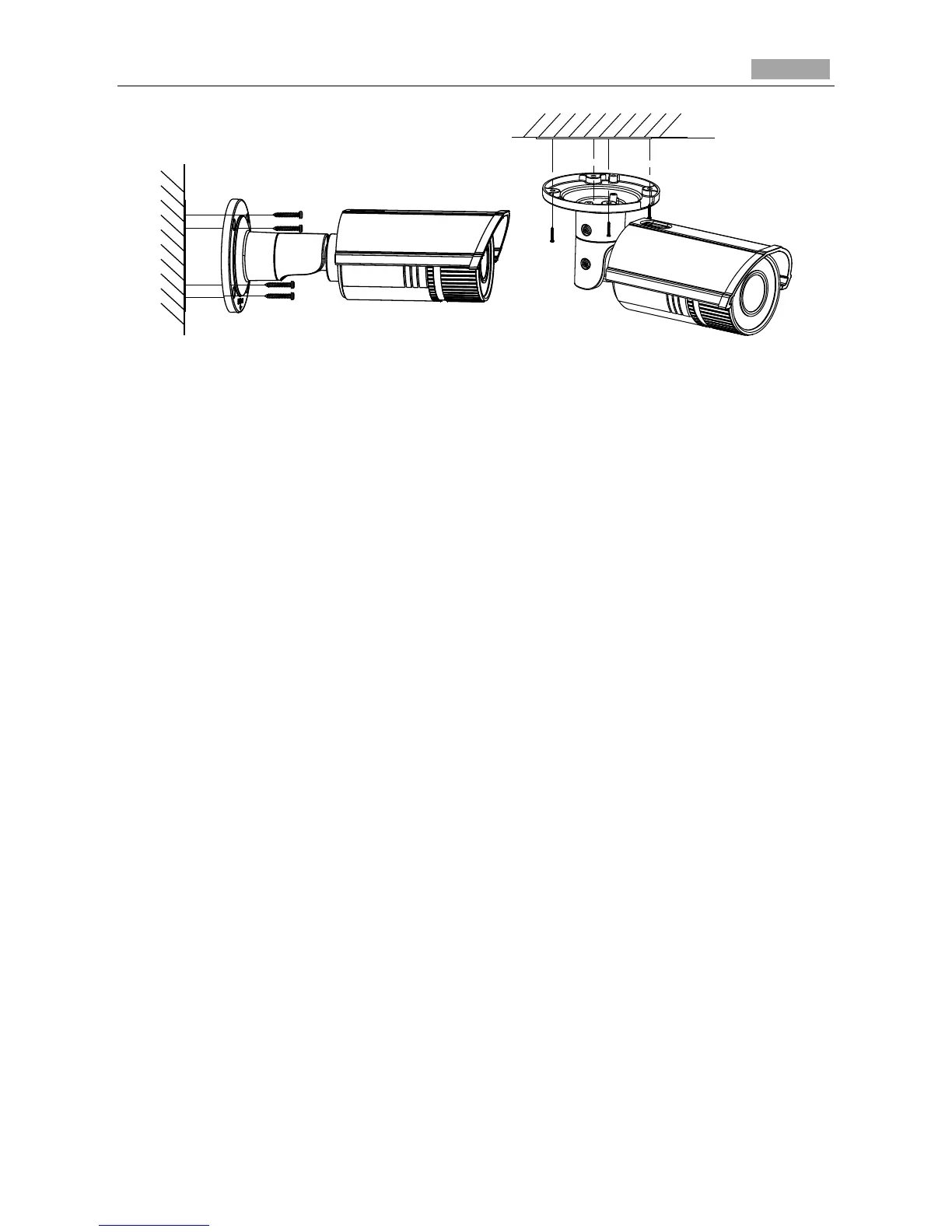

Figure 4-29 Secure the Camera

 Wall Mounting with a Junction Box

Before you start:

For mounting with a junction box, you have to purchase a junction box.

Steps:

1. Attach the drill template (supplied) to the wall where the camera is to be mounted.

2. Drill holes in the wall according to the No.2 holes of the drill template. Refer to the Figure 4-28.

3. If you need to route cables through the wall (or ceiling), cut a cable hole according to the drill

template. Skip this step, if you want to route the cables on the surface of the ceiling.

4. Secure the junction box to the wall with expansion screws.

5. Route the cables of the camera.

6. Connect the video output connector to the monitor. Connect the power connector to the power

supply.

7. Adjust the image and focus. Please refer to Zoom and Focus Adjusting for more detailed

information.

8. Hook the camera to the junction box with the safety rope. Refer to the Figure 4-30.

9. Secure the camera to the junction box with screws.

Lo-Call 1890 866 900

www.cctvireland.ie

shop@cctvireland.ie

Other manuals for HIKVISION DS-2CD2032-I

Need help?

Do you have a question about the HIKVISION DS-2CD2032-I and is the answer not in the manual?

General

Type	IP security camera
PTZ control	No
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Form factor	Bullet
Mounting type	Wall
Product color	White
International Protection (IP) code	IP66
Total megapixels	3 MP
Maximum resolution	2048 x 1536 pixels
Supported video modes	1080p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
Camera shutter speed	0.04 s
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Optical zoom	- x
Zoom capability	-
Focal length range	4 - 12 mm
LED type	IR
Night vision distance	30 m
Cabling technology	10/100Base-T(X)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet LAN (RJ-45) ports	1
AC input voltage	12 V
Power source type	PoE
Power consumption (max)	7 W
Power consumption (typical)	5 W
Operating temperature (T-T)	-30 - 60 °C
