5. Secure the junction box's body with three supplied screws on the
wall.

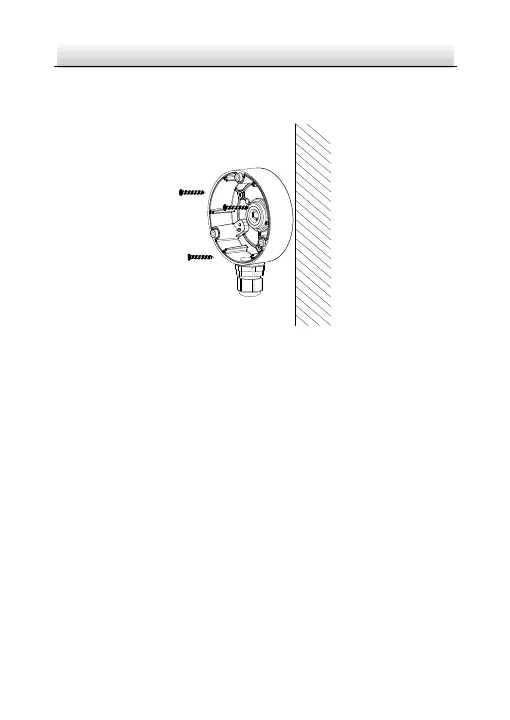

Figure 2-7 Fix the Junction Box on the Wall
6. Route the cables through the cable hole. Here we take bottom
cable hole as the example to describe the installation.
1). Separate the waterproof cover and the cable gland from the
junction box.
2). Route the cable through the bottom cable hole and the cable
gland.
3). Screw the cable gland back on the bottom cable hole.
4). Screw the waterproof cover back on the side cable hole.
7. Combine the junction box cover with its body with three screws on
the junction box's cover.
